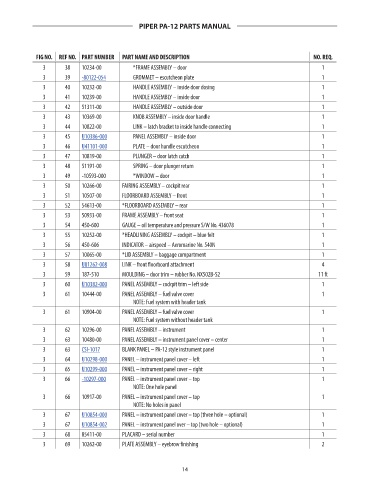

PIPER PA-12 PARTS MANUAL

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
3 38 10234-00 *FRAME ASSEMBLY – door 1 NM!
3 39 -80122-054 GROMMET – escutcheon plate 1 10.51
3 40 10232-00 HANDLE ASSEMBLY – inside door dosing 1 NM!
3 41 10239-00 HANDLE ASSEMBLY – inside door 1 NM!
3 42 51311-00 HANDLE ASSEMBLY – outside door 1 NM!
3 43 10369-00 KNOB ASSEMBLY – inside door handle 1 NM!
3 44 10822-00 LINK – latch bracket to inside handle connecting 1 NM!
3 45 U10386-000 PANEL ASSEMBLY – inside door 1 217.2
3 46 U41101-000 PLATE – door handle escutcheon 1 35.56
3 47 10819-00 PLUNGER – door latch catch 1 NM!
3 48 51191-00 SPRING – door plunger return 1 NM!
3 49 -10593-000 *WINDOW – door 1 NM!

3 50 10266-00 FAIRING ASSEMBLY – cockpit rear 1 NM!
3 51 10507-00 FLOORBOARD ASSEMBLY – front 1 NM!
3 52 54613-00 *FLOORBOARD ASSEMBLY – rear 1 NM!
3 53 50933-00 FRAME ASSEMBLY – front seat 1 NM!
3 54 450-600 GAUGE – oil temperature and pressure S/W No. 436078 1 NM!
3 55 10252-00 *HEADLINING ASSEMBLY – cockpit – blue felt 1 NM!
3 56 450-606 INDICATOR – airspeed – Aeromarine No. 540N 1 NM!
3 57 10065-00 *LID ASSEMBLY – baggage compartment 1 NM!
3 58 U81262-008 LINK – front floorboard attachment 4 12.3
3 59 187-510 MOULDING – door trim – rubber No. NX502B-S2 11 ft NM!
3 60 U10382-000 PANEL ASSEMBLY – cockpit trim – left side 1 233.53
3 61 10444-00 PANEL ASSEMBLY – fuel valve cover 1 NM!
NOTE: Fuel system with header tank
3 61 10904-00 PANEL ASSEMBLY – fuel valve cover 1 NM!
NOTE: Fuel system without header tank
3 62 10296-00 PANEL ASSEMBLY – instrument 1 NM!
3 63 10480-00 PANEL ASSEMBLY – instrument panel cover – center 1 NM!
3 63 CSI-1017 BLANK PANEL – PA-12 style instrument panel 1 140.2
3 64 U10298-000 PANEL – instrument panel cover – left 1 248.65
3 65 U10299-000 PANEL – instrument panel cover – right 1 248.65
3 66 -10297-000 PANEL – instrument panel cover – top 1 207.75
NOTE: One hole panel
3 66 10917-00 PANEL – instrument panel cover – top 1 NM!
NOTE: No holes in panel
3 67 U10854-000 PANEL – instrument panel cover – top (three hole – optional) 1 244.19
3 67 U10854-002 PANEL – instrument panel over – top (two hole – optional) 1 244.19
3 68 85411-00 PLACARD – serial number 1 NM!
3 69 10262-00 PLATE ASSEMBLY – eyebrow finishing 2 NM!

14
