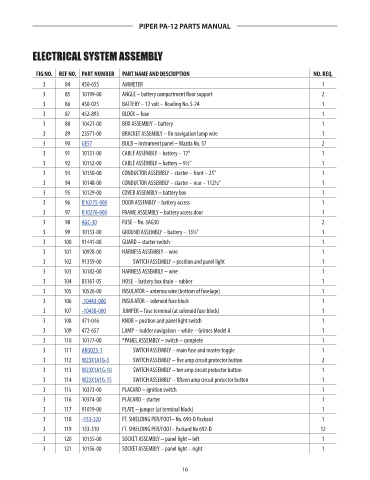

PIPER PA-12 PARTS MANUAL
ELECTRICAL SYSTEM ASSEMBLY
FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
3 84 450-655 AMMETER 1 NM!
3 85 10199-00 ANGLE – battery compartment floor support 2 NM!
3 86 450-025 BATTERY – 12 volt – Reading No. S-24 1 NM!
3 87 452-893 BLOCK – fuse 1 NM!
3 88 10421-00 BOX ASSEMBLY – battery 1 NM!
3 89 23571-00 BRACKET ASSEMBLY – fin navigation lamp wire 1 NM!
3 90 GE57 BULB – instrument panel – Mazda No. 57 2 2.09
3 91 10131-00 CABLE ASSEMBLY – battery – 12” 1 NM!
3 92 10152-00 CABLE ASSEMBLY – battery – 9½” 1 NM!
3 93 10150-00 CONDUCTOR ASSEMBLY – starter – front – 25” 1 NM!
3 94 10148-00 CONDUCTOR ASSEMBLY – starter – rear – 112½” 1 NM!
3 95 10129-00 COVER ASSEMBLY – battery box 1 NM!
3 96 U10275-000 DOOR ASSEMBLY – battery access 1 291.87
3 97 U10276-000 FRAME ASSEMBLY – battery access door 1 421.66
3 98 AGC-30 FUSE – No. 3AG30 2 1.42
3 99 10153-00 GROUND ASSEMBLY – battery – 13 ⁄8” 1 NM!
5
3 100 91441-00 GUARD – starter switch 1 NM!
3 101 10928-00 HARNESS ASSEMBLY – wire 1 NM!
3 102 91359-00 SWITCH ASSEMBLY – position and panel light 1 NM!
3 103 10182-00 HARNESS ASSEMBLY – wire 1 NM!
3 104 83161-05 HOSE – battery box drain – rubber 1 NM!
3 105 10526-00 INSULATOR – antenna wire (bottom of fuselage) 1 NM!
3 106 -10443-000 INSULATOR – solenoid fuse block 1 23
3 107 -10438-000 JUMPER – fuse terminal (at solenoid fuse block) 1 16
3 108 471-046 KNOB – position and panel light switch 1 NM!
3 109 472-657 LAMP – rudder navigation – white – Grimes Model A 1 NM!
3 110 10177-00 *PANEL ASSEMBLY – switch – complete 1 NM!
3 111 AN3023-1 SWITCH ASSEMBLY – main fuse and master toggle 1 400
3 112 W23X1A1G-5 SWITCH ASSEMBLY – five amp circuit protector button 2 43.12
3 113 W23X1A1G-10 SWITCH ASSEMBLY – ten amp circuit protector button 1 48.4
3 114 W23X1A1G-15 SWITCH ASSEMBLY – fifteen amp circuit protector button 1 39.96
3 115 10373-00 PLACARD – ignition switch 1 NM!
3 116 10374-00 PLACARD – starter 1 NM!
3 117 91019-00 PLATE – jumper (at terminal block) 1 NM!
3 118 -153-320 FT. SHIELDING PER/FOOT– No. 690-D Packard 1 1.62
3 119 153-310 FT. SHIELDING PER/FOOT– Packard No 692-D 12 NM!
3 120 10155-00 SOCKET ASSEMBLY – panel light – left 1 NM!
3 121 10156-00 SOCKET ASSEMBLY – panel light – right 1 NM!
16
