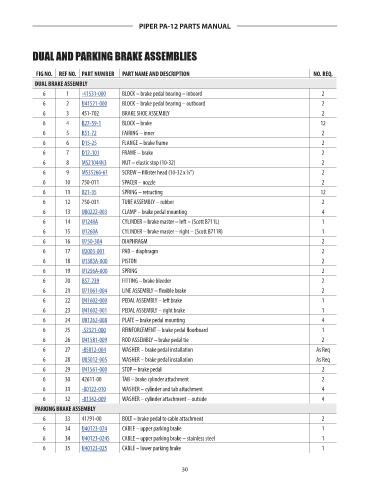

PIPER PA-12 PARTS MANUAL
DUAL AND PARKING BRAKE ASSEMBLIES
FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
DUAL BRAKE ASSEMBLY
6 1 -41531-000 BLOCK – brake pedal bearing – inboard 2 91.63
6 2 U41521-000 BLOCK – brake pedal bearing – outboard 2 111.29
6 3 451-702 BRAKE SHOE ASSEMBLY 2 NM!
6 4 B27-59-1 BLOCK – brake 12 80.50
6 5 B51-72 FAIRING – inner 2 119.00
6 6 D15-25 FLANGE – brake frame 2 56.01
6 7 D12-101 FRAME – brake 2 31.02
6 8 MS21044N3 NUT – elastic stop (10-32) 2 0.51
3
6 9 MS35266-61 SCREW – fillister head (10-32 x ⁄8’’) 2 0.38
6 10 750-011 SPACER – nozzle 2 NM!
6 11 B21-35 SPRING – retracting 12 12.42
6 12 750-031 TUBE ASSEMBLY – rubber 2 NM!
6 13 U80222-003 CLAMP – brake pedal mounting 4 21.33
6 14 U1248A CYLINDER – brake master – left – (Scott B711L) 1 1493.93
6 15 U1260A CYLINDER – brake master – right – (Scott B711R) 1 1493.93
6 16 U750-384 DIAPHRAGM 2 48.31
6 17 U2003-001 PAD – diaphragm 2 44.86
6 18 U1383A-000 PISTON 2 76.74
6 19 U1256A-000 SPRING 2 20.28
6 20 B57-239 FITTING – brake bleeder 2 133.55
6 21 U71061-004 LINE ASSEMBLY – flexible brake 2 242.55
6 22 U41602-000 PEDAL ASSEMBLY – left brake 1 229.86
6 23 U41602-001 PEDAL ASSEMBLY – right brake 1 229.86
6 24 U81262-008 PLATE – brake pedal mounting 4 13.56
6 25 -52321-000 REINFORCEMENT – brake pedal floorboard 1 54.85
6 26 U41581-009 ROD ASSEMBLY – brake pedal tie 2 87.12
6 27 -85012-004 WASHER – brake pedal installation As Req 2.63
6 28 U85012-005 WASHER – brake pedal installation As Req 2.74
6 29 U41561-000 STOP – brake pedal 2 30.68
6 30 42611-00 TAB – brake cylinder attachment 2 NM!
6 31 -80122-010 WASHER – cylinder and tab attachment 4 5.31
6 32 -81342-009 WASHER – cylinder attachment – outside 4 5.63
PARKING BRAKE ASSEMBLY X
6 33 41791-00 BOLT – brake pedal to cable attachment 2 NM!
6 34 U40123-024 CABLE – upper parking brake 1 99.21
6 34 U40123-024S CABLE – upper parking brake – stainless steel 1 151.63
6 35 U40123-025 CABLE – lower parking brake 1 37.02
