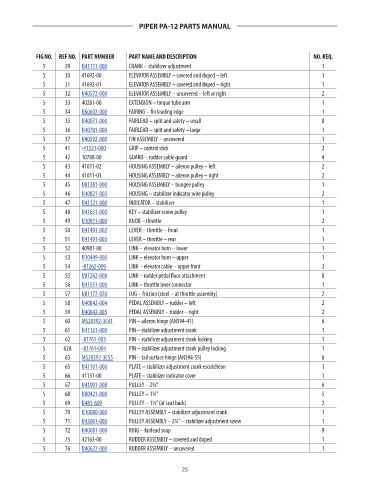

PIPER PA-12 PARTS MANUAL

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
5 29 U41111-000 CRANK – stabilizer adjustment 1 139.81
5 30 41692-00 ELEVATOR ASSEMBLY – covered and doped – left 1 NM!
5 31 41692-01 ELEVATOR ASSEMBLY – covered and doped – right 1 NM!
5 32 U40572-000 ELEVATOR ASSEMBLY – uncovered – left or right 2 743.95
5 33 40281-00 EXTENSION – torque tube arm 1 NM!
5 34 U60602-000 FAIRING – fin leading edge 1 138.78
5 35 U40071-000 FAIRLEAD – split and safety – small 8 1.45
5 36 U40701-000 FAIRLEAD – split and safety – large 1 1.44
5 37 U40592-000 FIN ASSEMBLY – uncovered 1 623.71
5 41 -41221-000 GRIP – control stick 2 38.24
5 42 10788-00 GUARD – rudder cable guard 4 NM!
5 43 41011-02 HOUSING ASSEMBLY – aileron pulley – left 2 NM!
5 44 41011-03 HOUSING ASSEMBLY – aileron pulley – right 2 NM!
5 45 U81381-000 HOUSING ASSEMBLY – bungee pulley 1 87.54
5 46 U40821-003 HOUSING – stabilizer indicator wire pulley 2 14.15
5 47 U41121-000 INDICATOR – stabilizer 1 38.27
5 48 U41631-000 KEY – stabilizer screw pulley 1 20.01
5 49 U10911-000 KNOB – throttle 2 13.71
5 50 U41491-002 LEVER – throttle – front 1 212.46
5 51 U41491-003 LEVER – throttle – rear 1 191.12
5 52 40981-00 LINK – elevator horn – lower 1 NM!
5 53 U10449-000 LINK – elevator horn – upper 1 37.70
5 54 -81262-009 LINK – elevator cable – upper front 2 9.40
5 55 U81262-008 LINK – rudder pedal floor attachment 8 13.56
5 56 U41551-000 LINK – throttle lever connector 1 67.62
5 57 U81172-020 LUG – friction (steel – at throttle assembly) 2 9.46
5 58 U40842-004 PEDAL ASSEMBLY – rudder – left 2 216.75
5 59 U40842-005 PEDAL ASSEMBLY – rudder – right 2 216.75
5 60 MS20392-3C41 PIN – aileron hinge (AN394-41) 6 2.50
5 61 U41161-000 PIN – stabilizer adjustment crank 1 40.79
5 62 -81761-003 PIN – stabilizer adjustment crank locking 1 22.26
5 62A -81761-004 PIN – stabilizer adjustment crank pulley locking 1 13.67
5 63 MS20392-3C55 PIN – tail surface hinge (AN394-55) 6 1.28
5 65 U41101-000 PLATE – stabilizer adjustment crank escutcheon 1 39.21
5 66 41131-00 PLATE – stabilizer indicator cover 1 NM!
5 67 U41001-008 PULLEY – 2¾” 6 77.99
5 68 U80421-000 PULLEY – 1¾” 5 13.64
5 69 U481-609 PULLEY – 1½” (at seat back) 2 13.13
5 70 U10080-000 PULLEY ASSEMBLY – stabilizer adjustment crank 1 175.78
5 71 U43061-000 PULLEY ASSEMBLY – 2¾” – stabilizer adjustment screw 1 132.70
5 72 U40081-000 RING – fairlead snap 9 0.54
5 75 42163-00 RUDDER ASSEMBLY – covered and doped 1 NM!
5 76 U40622-000 RUDDER ASSEMBLY – uncovered 1 915.52

25
