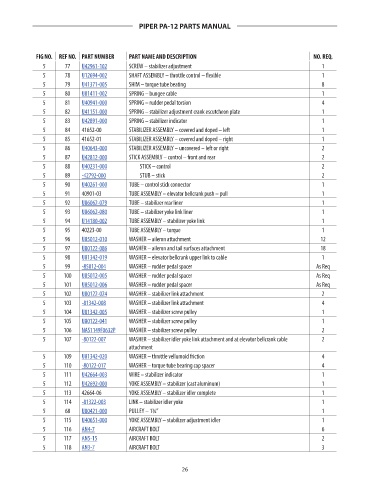

PIPER PA-12 PARTS MANUAL
FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
5 77 U42961-102 SCREW – stabilizer adjustment 1 128.23
5 78 U12694-002 SHAFT ASSEMBLY – throttle control – flexible 1 654.45
5 79 U41371-005 SHIM – torque tube beating 8 13.14
5 80 U81411-002 SPRING – bungee cable 1 44.58
5 81 U40941-000 SPRING – rudder pedal torsion 4 12.47
5 82 U41151-000 SPRING – stabilizer adjustment crank escutcheon plate 1 10.63
5 83 U42891-000 SPRING – stabilizer indicator 1 8.31
5 84 41652-00 STABILIZER ASSEMBLY – covered and doped – left 1 NM!
5 85 41652-01 STABILIZER ASSEMBLY – covered and doped – right 1 NM!
5 86 U40643-000 STABILIZER ASSEMBLY – uncovered – left or right 2 875.23
5 87 U42812-000 STICK ASSEMBLY – control – front and rear 2 624.06
5 88 U40231-000 STICK – control 2 137.59
5 89 -42792-000 STUB – stick 2 439.68
5 90 U40261-000 TUBE – control stick connector 1 262.78
5 91 40901-03 TUBE ASSEMBLY – elevator bellcrank push – pull 1 NM!
5 92 U86062-079 TUBE – stabilizer rear liner 1 107.66
5 93 U86062-080 TUBE – stabilizer yoke link liner 1 142.85
5 94 U14180-002 TUBE ASSEMBLY – stabilizer yoke link 1 343.50
5 95 40223-00 TUBE ASSEMBLY – torque 1 NM!
5 96 U85012-010 WASHER – aileron attachment 12 6.22
5 97 U80122-086 WASHER – aileron and tail surfaces attachment 18 2.71
5 98 U81342-019 WASHER – elevator bellcrank upper link to cable 1 4.63
5 99 -85012-004 WASHER – rudder pedal spacer As Req 2.63
5 100 U85012-005 WASHER – rudder pedal spacer As Req 2.74
5 101 U85012-006 WASHER – rudder pedal spacer As Req 3.68
5 102 U80122-024 WASHER – stabilizer link attachment 2 4.61
5 103 U81342-008 WASHER – stabilizer link attachment 4 5.74
5 104 U81342-005 WASHER – stabilizer screw pulley 1 10.26
5 105 U80122-041 WASHER – stabilizer screw pulley 1 14.72
5 106 NAS1149F0632P WASHER – stabilizer screw pulley 2 0.06
5 107 -80122-007 WASHER – stabilizer idler yoke link attachment and at elevator bellcrank cable 2 9.53
attachment
5 109 U81342-020 WASHER – throttle vellumoid friction 4 3.65
5 110 -80122-017 WASHER – torque tube bearing cap spacer 4 7.39
5 111 U42664-003 WIRE – stabilizer indicator 1 28.88
5 112 U42692-000 YOKE ASSEMBLY – stabilizer (cast aluminum) 1 318.63
5 113 42664-06 YOKE ASSEMBLY – stabilizer idler complete 1 NM!
5 114 -81322-003 LINK – stabilizer idler yoke 1 15.72
5 68 U80421-000 PULLEY – 1¾” 1 13.64
5 115 U40651-000 YOKE ASSEMBLY – stabilizer adjustment idler 1 47.37
5 116 AN4-7 AIRCRAFT BOLT 6 0.58
5 117 AN5-15 AIRCRAFT BOLT 2 1.10
5 118 AN3-7 AIRCRAFT BOLT 3 1.00
