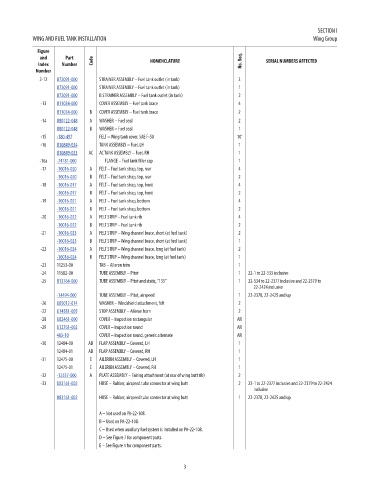

SECTION I
WING AND FUEL TANK INSTALLATION Wing Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
2-12 U72091-000 STRAINER ASSEMBLY – Fuel tank outlet (in tank) 3 69.26
U72091-000 STRAINER ASSEMBLY – Fuel tank outlet (in tank) 1 69.26
U72091-000 B STRAINER ASSEMBLY – Fuel tank outlet (in tank) 2 69.26
-13 U11034-000 COVER ASSEMBLY – Fuel tank brace 4 21.87
U11034-000 B COVER ASSEMBLY – Fuel tank brace 2 21.87
-14 U80122-048 A WASHER – Fuel seal 2 8.21
U80122-048 B WASHER – Fuel seal 1 8.21
-15 -180-497 FELT – Wing tank cover, SAE F-50 10’ 4.67
-16 U10849-034 TANK ASSEMBLY – Fuel, LH 1 2105.1
U10849-033 AC AC TANK ASSEMBLY – Fuel, RH 1 1953.38
-16a -74181-000 FLANGE – Fuel tank filler cap 1 49.57
-17 -10016-020 A FELT – Fuel tank strap, top, rear 4 17.01
-10016-020 B FELT – Fuel tank strap, top, rear 2 17.01
-18 -10016-017 A FELT – Fuel tank strap, top, front 4 6.7
-10016-017 B FELT – Fuel tank strap, top, front 2 6.7
-19 -10016-021 A FELT – Fuel tank strap, bottom 4 8.35
-10016-021 B FELT – Fuel tank strap, bottom 2 8.35
-20 -10016-022 A FELT STRIP – Fuel tank rib 4 19.19
-10016-022 B FELT STRIP – Fuel tank rib 2 19.19
-21 -10016-023 A FELT STRIP – Wing channel brace, short (at fuel tank) 2 9.9
-10016-023 B FELT STRIP – Wing channel brace, short (at fuel tank) 1 9.9
-22 -10016-024 A FELT STRIP – Wing channel brace, long (at fuel tank) 2 20.13
-10016-024 B FELT STRIP – Wing channel brace, long (at fuel tank) 1 20.13
-23 11253-00 TAB – Aileron trim 1 NM!
-24 11582-00 TUBE ASSEMBLY – Pitot 1 22-1 to 22-533 inclusive NM!
-25 U13764-000 TUBE ASSEMBLY – Pitot and static, “135” 1 22-534 to 22-2377 inclusive and 22-2379 to 197.25
22-2424 inclusive
-14494-000 TUBE ASSEMBLY – Pitot, airspeed 1 22-2378, 22-2425 and up 148.88
-26 U85012-014 WASHER – Windshield attachment, felt 2 4.67
-22 U14581-005 STOP ASSEMBLY – Aileron horn 2 160.86
-28 U82461-000 COVER – Inspection rectangular AR 18.02
-29 U12761-002 COVER – Inspection round AR 46.86
483-10 COVER – Inspection round, generic alternate AR 2.25
-30 12484-00 AD FLAP ASSEMBLY – Covered, LH 1 NM!
12484-01 AD FLAP ASSEMBLY – Covered, RH 1 NM!
-31 12475-00 E AILERON ASSEMBLY – Covered, LH 1 NM!
12475-01 E AILERON ASSEMBLY – Covered, RH 1 NM!
-32 -12537-000 A PLATE ASSEMBLY – Fairing attachment (at rear of wing butt rib) 2 130.35
-33 U83161-002 HOSE – Rubber, airspeed tube connector at wing butt 2 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 5.91
inclusive
U83161-002 HOSE – Rubber, airspeed tube connector at wing butt 1 22-2378, 22-2425 and up 5.91

A – Not used on PA-22-108.
B – Used on PA-22-108.
C – Used when auxiliary fuel system is installed on PA-22-108.
D – See Figure 7 for component parts.
E – See Figure 4 for component parts.
