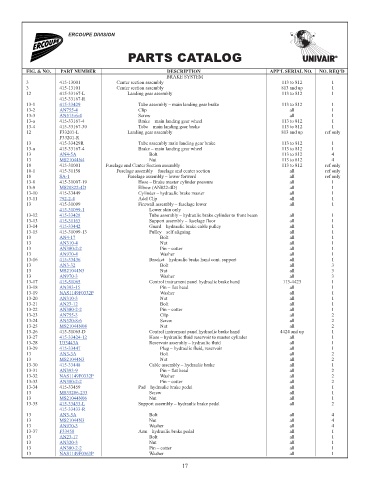

Page 22 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
BRAKE SYSTEM
3 415-13001 Center section assembly 113 to 812 1 NM!
3 415-13101 Center section assembly 813 and up 1 NM!
12 415-33167-L Landing gear assembly 113 to 812 1 NM!
415-33167-R
13-1 415-33429 Tube assembly – main landing gear brake 113 to 812 1 26.47
13-2 AN755-4 Clip all 1 0.5
13-3 AN515-6-4 Screw all 1 0.03
13-a 415-33167-4 Brake – main landing gear wheel 113 to 812 1 NM!
13-4 415-33167-30 Tube – main landing gear brake 113 to 812 1 NM!
12 F33201-L Landing gear assembly 813 and up ref only NM!
F33201-R
13 415-33429R Tube assembly main landing gear brake 113 to 812 1 NM!
13-a 415-33167-4 Brake – main landing gear wheel 113 to 812 1 NM!
13 AN4-5A Bolt 113 to 812 4 0.16
13 MS21044N4 Nut 113 to 812 4 0.3
10 415-31001 Fuselage and Center Section assembly 113 to 812 ref only NM!
10-1 415-31158 Fuselage assembly – fuselage and center section all ref only NM!
10 SA-1 Fuselage assembly – lower forward all ref only 3670.54
13-8 415-31007-19 Hose – Brake master cylinder pressure all 1 NM!
13-9 MS20822-4D Elbow (AN822-4D) all 1 20
13-10 415-33449 Cylinder – hydraulic brake master all 1 NM!
13-11 792-2-4 Adel Clip all 1 2.54
13 415-31099 Firewall assembly – fuselage lower all 1 NM!
415-31099-1 Lower skin only 204.88
13-12 415-33428 Tube assembly – hydraulic brake cylinder to front beam all 1 26.83
13-13 415-31163 Support assembly – fuselage floor all 1 15.27
13-14 415-33442 Guard – hydraulic brake cable pulley all 1 23.68
13-15 415-31099-13 Pulley – self aligning all 1 NM!
13 AN4-17 Bolt all 1 0.8
13 AN310-4 Nut all 1 1.6
13 AN380-2-2 Pin – cotter all 1 0.04
13 AN970-4 Washer all 1 0.28
13-16 415-33436 Bracket – hydraulic brake hand cont. support all 1 45.21
13 AN3-32 Bolt all 3 3.12
13 MS21044N3 Nut all 3 0.24
13 AN970-3 Washer all 3 0.16
13-17 415-51065 Control instrument panel hydraulic brake hand 113-4423 1 190.29
13-18 AN393-15 Pin – flat head all 1 0.71
13-19 NAS1149F0332P Washer all 1 0.04
13-20 AN310-3 Nut all 1 1.5
13-21 AN23-12 Bolt all 1 1.3
13-22 AN380-2-2 Pin – cotter all 1 0.04
13-23 AN755-3 Clip all 2 0.45
13-24 AN520-8-6 Screw all 2 0.14
13-25 MS21044N08 Nut all 2 0.24
13-26 415-51065-D Control instrument panel hydraulic brake hand 4424 and up 1 NM!
13-27 415-33424-12 Hose – hydraulic fluid reservoir to master cylinder all 1 25.99
13-28 U33443A Reservoir assembly – hydraulic fluid all 1 386.46
13-29 415-33447 Plug – hydraulic fluid, reservoir all 1 12.03
13 AN3-3A Bolt all 2 0.16
13 MS21044N3 Nut all 2 0.24
13-30 415-33448 Cable assembly – hydraulic brake all 1 69.61
13-31 AN393-9 Pin – flat head all 2 1.03
13-32 NAS1149F0332P Washer all 2 0.04
13-33 AN380-2-2 Pin – cotter all 2 0.04
13-34 415-33459 Pad – hydraulic brake pedal all 1 NM!
13 MS35206-233 Screw all 1 0.22
13 MS21044N06 Nut all 1 0.32
13-35 415-33433-L Support assembly – hydraulic brake pedal all 2 25.84
415-33433-R
13 AN3-5A Bolt all 4 0.16
13 MS21044N3 Nut all 4 0.24
13 AN970-3 Washer all 4 0.16
13-37 F33458 Arm – hydraulic brake pedal all 1 247.78
13 AN23-17 Bolt all 1 2.18
13 AN320-3 Nut all 1 1
13 AN380-2-2 Pin – cotter all 1 0.04
13 NAS1149F0363P Washer all 1 0.04
17
