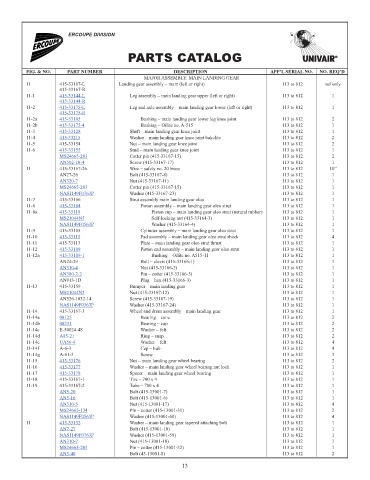

Page 18 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
MAJOR ASSEMBLY: MAIN LANDING GEAR
11 415-33167-L Landing gear assembly – main (left or right) 113 to 812 ref only NM!
415-33167-R
11-1 415-33144-L Leg assembly – main landing gear upper (left or right) 113 to 812 1 372.37
415-33144-R
11-2 415-33175-L Leg and axle assembly – main landing gear lower (left or right) 113 to 812 1 599.12
415-33175-R
11-2a 415-33105 Bushing – main landing gear lower leg knee joint 113 to 812 2 42.12
11-2b 415-33175-4 Bushing – Oilite no. A-515 113 to 812 1 8.10
11-3 415-33128 Shaft – main landing gear knee joint 113 to 812 1 165.55
11-4 415-33215 Washer – main landing gear knee joint bakelite 113 to 812 2 9.94
11-5 415-33154 Nut – main landing gear knee joint 113 to 812 2 NM!
11-6 415-33155 Stud – main landing gear knee joint 113 to 812 1 14.69
MS24665-283 Cotter pin (415-33167-15) 113 to 812 2 0.14
AN502-10-4 Screw (415-33167-17) 113 to 812 1 1.02
11 415-33167-26 Wire – safety no. 20 brass 113 to 812 10” NM!
AN27-26 Bolt (415-33167-8) 113 to 812 1 NM!
AN320-7 Nut (415-33167-11) 113 to 812 1 3.55
MS24665-283 Cotter pin (415-33167-15) 113 to 812 1 0.14
NAS1149F0763P Washer (415-33167-23) 113 to 812 1 0.20
11-7 415-33166 Strut assembly main landing gear oleo 113 to 812 1 NM!
11-8 415-33164 Piston assembly – main landing gear oleo strut 113 to 812 1 496.25
11-8a 415-33119 Piston cup – main landing gear oleo strut (natural rubber) 113 to 812 1 50.89
MS21044N5 Self-locking nut (415-33164-3) 113 to 812 1 0.50
NAS1149F0563P Washer (415-33164-4) 113 to 812 1 0.18
11-9 415-33165 Cylinder assembly – main landing gear oleo strut 113 to 812 1 NM!
11-10 415-33115 Pad assembly – main landing gear oleo strut shock 113 to 812 4 12.39
11-11 415-33113 Plate – main landing gear oleo strut thrust 113 to 812 1 NM!
11-12 415-33109 Piston end assembly – main landing gear oleo strut 113 to 812 1 55.19
11-12a 415-33109-1 Bushing – Oilite no. A515-11 113 to 812 1 26.38
AN24-29 Bolt – clevis (415-33166-1) 113 to 812 1 NM!
AN310-4 Nut (415-33166-2) 113 to 812 1 3.10
AN380-2-2 Pin – cotter (415-33166-5) 113 to 812 1 0.04
AN913-1D Plug – hex (415-33166-3) 113 to 812 1 NM!
11-13 415-33159 Bumper – main landing gear 113 to 812 1 NM!
MS21044N3 Nut (415-33167-12) 113 to 812 1 0.51
AN526-1032-14 Screw (415-33167-19) 113 to 812 1 NM!
NAS1149F0363P Washer (415-33167-24) 113 to 812 1 0.08
11-14 415-33167-3 Wheel and drum assembly – main landing gear 113 to 812 1 NM!
11-14a 08125 Bearing – cone 113 to 812 2 49.98
11-14b 08231 Bearing – cup 113 to 812 2 31.18
11-14c E-50024-48 Washer – felt 113 to 812 2 NM!
11-14d A85-21 Ring – snap 113 to 812 2 28.61
11-14e UA56-4 Washer – felt 113 to 812 4 10.19
11-14f A-6-3 Cap – hub 113 to 812 4 NM!
11-14g A-61-3 Screw 113 to 812 3 NM!
11-15 415-33176 Nut – main landing gear wheel bearing 113 to 812 2 20.62
11-16 415-33177 Washer – main landing gear wheel bearing nut lock 113 to 812 1 26.84
11-17 415-33178 Spacer – main landing gear wheel bearing 113 to 812 1 35.05
11-18 415-33167-1 Tire – 700 x 4 113 to 812 1 NM!
11-19 415-33167-2 Tube – 700 x 4 113 to 812 1 NM!
AN5-20 Bolt (415-13001-7) 113 to 812 1 0.82
AN5-16 Bolt (415-13001-6) 113 to 812 1 1.50
AN310-5 Nut (415-13001-17) 113 to 812 4 2.20
MS24665-134 Pin – cotter (415-13001-31) 113 to 812 2 0.06
NAS1149F0563P Washer (415-13001-60) 113 to 812 4 0.18
11 415-33132 Washer – main landing gear tapered attaching bolt 113 to 812 1 42.41
AN7-27 Bolt (415-13001-10) 113 to 812 1 8.15
NAS1149F0763P Washer (415-13001-59) 113 to 812 1 0.20
AN310-7 Nut (415-13001-18) 113 to 812 1 1.50
MS24665-283 Pin – cotter (415-13001-32) 113 to 812 1 0.14
AN5-40 Bolt (45-13001-8) 113 to 812 2 2.96
13
