ERCOUPE DIVISION

PARTS CATALOG

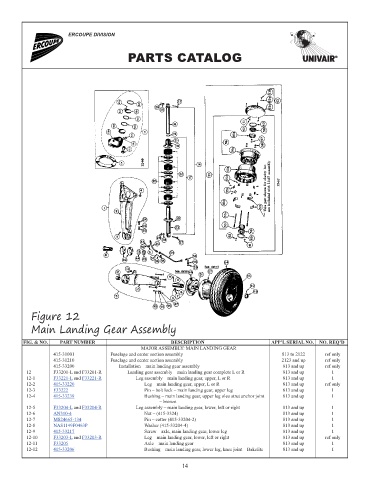

Figure 12

Main Landing Gear Assembly

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
MAJOR ASSEMBLY: MAIN LANDING GEAR
415-31001 Fuselage and center section assembly 813 to 2122 ref only NM!
415-31210 Fuselage and center section assembly 2123 and up ref only NM!
415-33200 Installation – main landing gear assembly 813 and up ref only NM!
12 F33201-L and F33201-R Landing gear assembly – main landing gear complete L or R 813 and up 1 NM!
12-1 F33221-L and F33221-R Leg assembly – main landing gear, upper, L or R 813 and up 1 NM!
12-2 415-33220 Leg – main landing gear, upper, L or R 813 and up ref only 586.05
12-3 F33222 Pin – bolt lock – main landing gear, upper leg 813 and up 1 6.96
12-4 415-33239 Bushing – main landing gear, upper leg oleo strut anchor joint 813 and up 1 5.14
– bronze
12-5 F33204-L and F33204-R Leg assembly – main landing gear, lower, left or right 813 and up 1 NM!
12-6 AN310-4 Nut – (415-3324) 813 and up 1 1.6
12-7 MS24665-134 Pin – cotter (415-33204-2) 813 and up 1 0.06
12-8 NAS1149F0463P Washer (415-33204-4) 813 and up 1 0.06
12-9 415-33217 Screw – axle, main landing gear, lower leg 813 and up 1 36.54
12-10 F33203-L and F33203-R Leg – main landing gear, lower, left or right 813 and up ref only NM!
12-11 F33205 Axle – main landing gear 813 and up 1 105.5
12-12 415-33206 Bushing – main landing gear, lower leg, knee joint – Bakelite 813 and up 1 13.38

14
