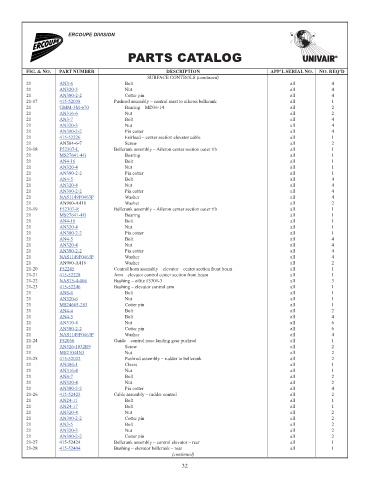

Page 37 - Ercoupe Parts Manual
P. 37
ERCOUPE DIVISION
PARTS CATALOG
FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
SURFACE CONTROLS (continued)
21 AN3-6 Bolt all 4 0.52
21 AN320-3 Nut all 4 1.00
21 AN380-2-2 Cotter pin all 4 0.04
21-17 415-52038 Pushrod assembly – control mast to aileron bellcrank all 1 224.72
21 GMM-3M-670 Bearing – MD36-14 all 2 23.88
21 AN316-6 Nut all 2 0.28
21 AN3-7 Bolt all 4 1.00
21 AN320-3 Nut all 4 1.00
21 AN380-2-2 Pin cotter all 4 0.04
21 415-52226 Fairlead – center section elevator cable all 1 5.05
21 AN504-6-7 Screw all 2 NM!
21-18 F52307-L Bellcrank assembly – Aileron center section outer rib all 1 860.58
21 MS27641-4G Bearing all 1 37.06
21 AN4-16 Bolt all 1 0.66
21 AN320-4 Nut all 1 2.52
21 AN380-2-2 Pin cotter all 1 0.04
21 AN4-5 Bolt all 4 1.20
21 AN320-4 Nut all 4 2.52
21 AN380-2-2 Pin cotter all 4 0.04
21 NAS1149F0463P Washer all 4 0.06
21 AN960-A416 Washer all 2 NM!
21-19 F52307-R Bellcrank assembly – Aileron center section outer rib all 1 860.58
21 MS27641-4G Bearing all 1 37.06
21 AN4-16 Bolt all 1 0.66
21 AN320-4 Nut all 1 2.52
21 AN380-2-2 Pin cotter all 1 0.04
21 AN4-5 Bolt all 4 1.20
21 AN320-4 Nut all 4 2.52
21 AN380-2-2 Pin cotter all 4 0.04
21 NAS1149F0463P Washer all 4 0.06
21 AN960-A416 Washer all 2 NM!
21-20 F52245 Control horn assembly – elevator – center section front beam all 1 468.00
21-21 415-52228 Arm – elevator control center section front beam all 1 58.81
21-22 NAS75-4-006 Bushing – oilite #5301-3 all 3 6.40
21-23 415-52246 Bushing – elevator control arm all 1 4.01
21 AN6-6 Bolt all 1 2.27
21 AN320-6 Nut all 1 1.00
21 MS24665-283 Cotter pin all 1 0.14
21 AN4-4 Bolt all 2 1.01
21 AN4-5 Bolt all 4 1.20
21 AN310-4 Nut all 6 3.10
21 AN380-2-2 Cotter pin all 6 0.04
21 NAS1149F0463P Washer all 4 0.06
21-24 F52056 Guide – control nose landing gear pushrod all 1 11.35
21 AN526-1032R9 Screw all 2 0.18
21 MS21044N3 Nut all 2 0.51
21-25 415-52022 Pushrod assembly – rudder to bellcrank all 2 372.27
21 AN486-1 Clevis all 1 39.87
21 AN316-4 Nut all 1 0.22
21 AN4-7 Bolt all 2 0.58
21 AN320-4 Nut all 2 2.52
21 AN380-2-2 Pin cotter all 4 0.04
21-26 415-52423 Cable assembly – rudder control all 2 119.34
21 AN24-11 Bolt all 1 1.90
21 AN24-17 Bolt all 1 1.84
21 AN320-4 Nut all 2 2.52
21 AN380-2-2 Cotter pin all 2 0.04
21 AN3-5 Bolt all 2 0.60
21 AN320-3 Nut all 2 1.00
21 AN380-2-2 Cotter pin all 2 0.04
21-27 415-52424 Bellcrank assembly – control elevator – rear all 1 NM!
21-28 415-52404 Bushing – elevator bellcrank – rear all 1 4.61
(continued)
32
