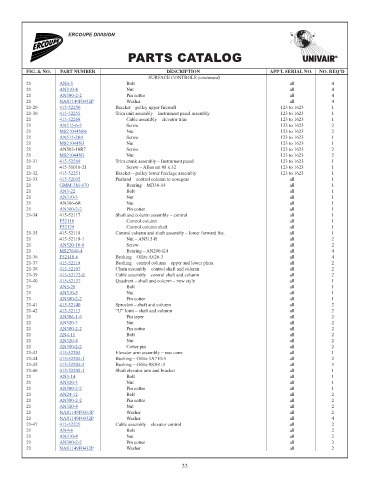

Page 38 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
SURFACE CONTROLS (continued)
21 AN4-5 Bolt all 4 1.20
21 AN310-4 Nut all 4 3.10
21 AN380-2-2 Pin cotter all 4 0.04
21 NAS1149F0432P Washer all 4 0.04
21-29 415-52250 Bracket – pulley upper firewall 123 to 1623 1 23.03
21-30 415-52255 Trim unit assembly – Instrument panel assembly 123 to 1623 1 433.68
21 415-52268 Cable assembly – elevator trim 123 to 1623 1 101.16
21 AN515-6-5 Screw 123 to 1623 2 0.12
21 MS21044N06 Nut 123 to 1623 2 0.44
21 AN515-2R4 Screw 123 to 1623 1 0.12
21 MS21044N3 Nut 123 to 1623 1 0.51
21 AN502-10R7 Screw 123 to 1623 2 NM!
21 MS21044N3 Nut 123 to 1623 2 0.51
21-31 415-52269 Trim crank assembly – Instrument panel 123 to 1623 1 42.11
21 415-51016-21 Screw – Allen set #8 x 32 123 to 1623 1 NM!
21-32 415-52251 Bracket – pulley lower fuselage assembly 123 to 1623 1 16.51
21-33 415-52035 Pushrod – control column to nosegear all 1 263.83
21 GMM-3M-670 Bearing – MD36-14 all 1 23.88
21 AN3-22 Bolt all 1 2.54
21 AN310-3 Nut all 1 2.62
21 AN366-6R Nut all 1 NM!
21 AN380-2-2 Pin cotter all 1 0.04
21-34 415-52117 Shaft and column assembly – control all 1 NM!
F52118 Control column all 1 1560.73
F52129 Control column shaft all 1 1668.54
21-35 415-52118 Control column and shaft assembly – lower forward fus. all 1 NM!
21 415-52118-1 Nut – AN515-R all 2 NM!
21 AN520-10-8 Screw all 2 0.08
21 MS27640-4 Bearing – AN200-K4 all 4 37.34
21-36 F52118-6 Bushing – Oilite A626-3 all 4 3.40
21-37 415-52119 Bushing – control column – upper and lower phen. all 2 87.90
21-38 415-52107 Chain assembly – control shaft and column all 2 35.66
21-39 415-52172-S Cable assembly – control shaft and column all 2 164.41
21-40 415-52137 Quadrant – shaft and column – new style all 1 324.16
21 AN5-26 Bolt all 1 1.14
21 AN310-5 Nut all 1 2.20
21 AN380-2-2 Pin cotter all 1 0.04
21-41 415-52140 Sprocket – shaft and column all 2 109.99
21-42 415-52113 “U” Joint – shaft and column all 2 438.39
21 AN386-1-6 Pin taper all 2 6.08
21 AN320-3 Nut all 2 1.00
21 AN380-2-2 Pin cotter all 2 0.04
21 AN4-11 Bolt all 2 0.60
21 AN320-4 Nut all 2 2.52
21 AN380-2-2 Cotter pin all 2 0.04
21-43 415-52204 Elevator arm assembly – rear cone all 1 141.58
21-44 415-52204-1 Bushing – Oilite #A710-3 all 2 6.54
21-45 415-52204-2 Bushing – Oilite #S301-3 all 3 6.54
21-46 415-52208-1 Shaft elevator arm and bracket all 1 22.23
21 AN3-14 Bolt all 1 0.66
21 AN320-3 Nut all 1 1.00
21 AN380-2-2 Pin cotter all 1 0.04
21 AN24-12 Bolt all 2 1.49
21 AN380-2-2 Pin cotter all 2 0.04
21 AN320-4 Nut all 2 2.52
21 NAS1149F0363P Washer all 2 0.08
21 NAS1149F0432P Washer all 4 0.04
21-47 415-52225 Cable assembly – elevator control all 2 324.20
21 AN4-6 Bolt all 2 0.52
21 AN310-4 Nut all 2 3.10
21 AN380-2-2 Pin cotter all 2 0.04
21 NAS1149F0432P Washer all 2 0.04

33
