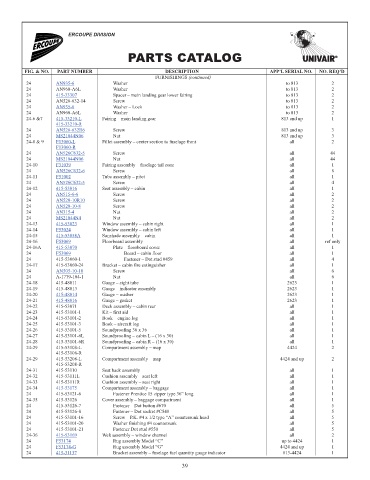

Page 44 - Ercoupe Parts Manual
P. 44
ERCOUPE DIVISION
PARTS CATALOG
FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
FURNISHINGS (continued)
24 AN935-6 Washer to 813 2 0.02
24 AN960-A6L Washer to 813 2 NM!
24 415-33307 Spacer – main landing gear lower fairing to 813 2 6.01
24 AN526-632-14 Screw to 813 2 NM!
24 AN935-6 Washer – Lock to 813 2 0.02
24 AN960-A6L Washer to 813 2 NM!
24-6 &7 415-33210-L Fairing – main landing gear 813 and up 1 200.59
415-33210-R
24 AN526-632R6 Screw 813 and up 3 0.20
24 MS21044N06 Nut 813 and up 3 0.44
24-8 & 9 F13060-L Fillet assembly – center section to fuselage front all 2 1330.07
F13060-R
24 AN526C632-5 Screw all 44 1.01
24 MS21044N06 Nut all 44 0.44
24-10 F31039 Fairing assembly – fuselage tail cone all 1 1505.57
24 AN526C632-6 Screw all 8 0.38
24-11 F51002 Tube assembly – pitot all 1 554.63
24 AN526C632-5 Screw all 4 1.01
24-12 415-53016 Seat assembly – cabin all 1 2967.64
24 AN515-6-6 Screw all 2 0.12
24 AN520-10R10 Screw all 2 0.51
24 AN520-10-8 Screw all 2 0.08
24 AN315-4 Nut all 2 0.22
24 MS21044N4 Nut all 2 0.30
24-13 415-53023 Window assembly – cabin right all 1 665.16
24-14 F53024 Window assembly – cabin left all 1 767.93
24-15 415-53058A Sunshade assembly – cabin all 1 780.27
24-16 F53069 Floorboard assembly all ref only 213.27
24-16A 415-53070 Plate – floorboard cover all 1 121.75
24 F53069 Board – cabin floor all 1 213.27
24 415-53060-1 Fastener – Dot stud #459 all 4 NM!
24-17 415-53060-24 Bracket – cabin fire extinguisher all 1 NM!
24 AN505-10-10 Screw all 6 0.56
24 A-1779-104-1 Nut all 6 NM!
24-18 415-48011 Gauge – sight tube 2623 1 NM!
24-19 415-48013 Gauge – indicator assembly 2623 1 NM!
24-20 415-48014 Gauge – washer 2623 1 3.68
24-21 415-48016 Gauge – gasket 2623 1 4.21
24-22 415-53071 Deck assembly – cabin rear all 1 NM!
24-23 415-53101-1 Kit – first aid all 1 NM!
24-24 415-53101-2 Book – engine log all 1 NM!
24-25 415-53101-3 Book – aircraft log all 1 NM!
24-26 415-53101-5 Soundproofing 36 x 36 all 1 NM!
24-27 415-53101-6L Soundproofing – cabin L – (16 x 30) all 1 NM!
24-28 415-53101-6R Soundproofing – cabin R – (16 x 30) all 1 NM!
24-29 415-53108-L Compartment assembly – map 4424 2 NM!
415-53108-R
24-29 415-53208-L Compartment assembly – map 4424 and up 2 NM!
415-53208-R
24-31 415-53110 Seat back assembly all 1 NM!
24-32 415-53111L Cushion assembly – seat left all 1 NM!
24-33 415-53111R Cushion assembly – seat right all 1 NM!
24-34 415-53175 Compartment assembly – baggage all 1 256.92
24 415-53121-6 Fastener Prentice #5 zipper type 36” long all 1 NM!
24-35 415-53126 Cover assembly – baggage compartment all 1 NM!
24 415-53126-7 Fastener – Dot button #670 all 5 NM!
24 415-53126-8 Fastener – Dot socket #C548 all 5 NM!
24 415-53101-16 Screw – P.K. #4 x 1/2 type “A” countersunk head all 5 NM!
24 415-53101-20 Washer finishing #4 countersunk all 5 NM!
24 415-53101-21 Fastener Dot stud #550 all 5 NM!
24-36 415-53169 Welt assembly – window channel all 2 NM!
24 F53174 Rug assembly Model “C” up to 4424 1 184.80
24 F53174-G Rug assembly Model “G” 4424 and up 1 184.80
24 415-31137 Bracket assembly – fuselage fuel quantity gauge indicator 813-4424 1 5.67
39
