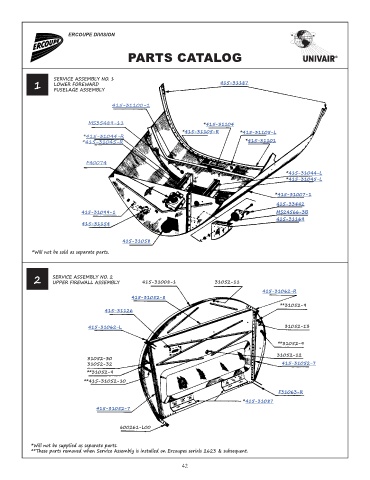

ERCOUPE DIVISION

PARTS CATALOG

SERVICE ASSEMBLY NO. 1
1 LOWER FOREWARD 415-31187
FUSELAGE ASSEMBLY

415-31100-1

MS35489-11 *415-31104
*415-31105-R *415-31105-L
*415-31044-R
*415-31045-R *415-31101

F40074
*415-31044-L
*415-31045-L

*415-31007-1
415-33442
415-31099-1 MS24566-3B
415-31169
415-31154

415-31058

*Will not be sold as separate parts.

2 SERVICE ASSEMBLY NO. 2 415-31008-1 31052-11
UPPER FIREWALL ASSEMBLY
415-31062-R
415-31052-8
**31052-9
415-31126

415-31062-L 31052-13

**31052-9

31052-12
31052-30
31052-32 415-31052-7
**31052-9
**415-31052-10
F31063-R
*415-31087
415-31052-7

600261-L00

*Will not be supplied as separate parts.
**These parts removed when Service Assembly is installed on Ercoupes serials 2623 & subsequent.
