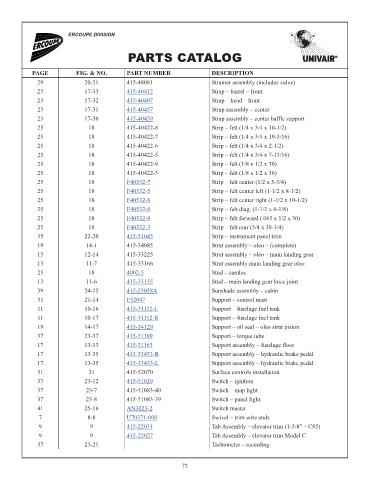

Page 78 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
29 20-21 415-48081 Strainer assembly (includes valve) NM!
23 17-33 415-40412 Strap – barrel – front 40.32
23 17-32 415-40407 Strap – head – front 64.98
23 17-31 415-40457 Strap assembly – center 108.91
23 17-30 415-40459 Strap assembly – center baffle support 106.94
25 18 415-40422-8 Strip – felt (1/4 x 3/4 x 10-1/2) NM!
25 18 415-40422-7 Strip – felt (1/4 x 3/4 x 19-5/16) NM!
25 18 415-40422-6 Strip – felt (1/4 x 3/4 x 2-1/2) NM!
25 18 415-40422-5 Strip – felt (1/4 x 3/4 x 7-13/16) NM!
25 18 415-40422-9 Strip – felt (1/8 x 1/2 x 30) NM!
25 18 415-40422-3 Strip – felt (1/8 x 1/2 x 36) NM!
25 18 F40532-7 Strip – felt center (1/2 x 5-3/4) 10.37
25 18 F40532-5 Strip – felt center left (1-1/2 x 8-1/2) 14.63
25 18 F40532-8 Strip – felt center right (1-1/2 x 10-1/2) 8.53
25 18 F40532-6 Strip – felt diag. (1-1/2 x 6-1/8) 14.30
25 18 F40532-9 Strip – felt forward (.065 x 1/2 x 30) 27.90
25 18 F40532-3 Strip – felt rear (3/4 x 38-3/4) 35.61
35 22-20 415-51045 Strip – instrument panel trim 50.11
19 14-1 415-34085 Strut assembly – oleo – (complete) NM!
15 12-14 415-33225 Strut assembly – oleo – main landing gear NM!
13 11-7 415-33166 Strut assembly main landing gear oleo NM!
25 18 4002-5 Stud – camloc 6.66
13 11-6 415-33155 Stud – main landing gear knee joint 14.69
39 24-15 415-53058A Sunshade assembly – cabin 780.27
31 21-14 F52047 Support – control mast 711.53
11 10-16 415-31112-L Support – fuselage fuel tank 123.98
11 10-17 415-31112-R Support – fuselage fuel tank 123.98
19 14-17 415-34129 Support – oil seal – oleo strut piston 301.61
37 23-37 415-51109 Support – torque tube 22.21
17 13-13 415-31163 Support assembly – fuselage floor 16.84
17 13-35 415-33433-R Support assembly – hydraulic brake pedal 28.49
17 13-35 415-33433-L Support assembly – hydraulic brake pedal 28.49
31 21 415-52070 Surface controls installation NM!
37 23-12 415-51029 Switch – ignition NM!
37 23-7 415-51083-40 Switch – map light NM!
37 23-8 415-51083-39 Switch – panel light NM!
41 25-16 AN3023-2 Switch master 70.00
7 8-8 U70371-000 Swivel – trim wire ends 62.65
9 9 415-22031 Tab Assembly – elevator trim (1-3/8” – C85) 419.69
9 9 415-22027 Tab Assembly – elevator trim Model C 294.05
37 23-21 Tachometer – recording
