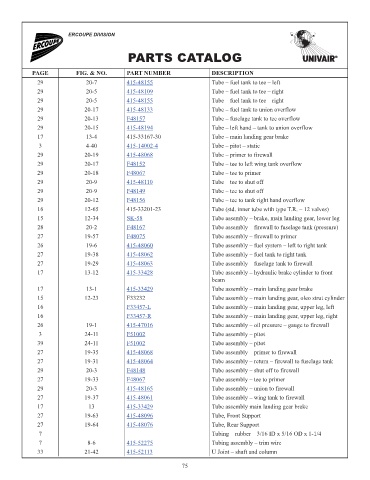

Page 80 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
29 20-7 415-48155 Tube – fuel tank to tee – left 21.87
29 20-5 415-48109 Tube – fuel tank to tee – right 110.15
29 20-5 415-48155 Tube – fuel tank to tee – right 21.87
29 20-17 415-48133 Tube – fuel tank to union overflow 24.21
29 20-13 F48157 Tube – fuselage tank to tee overflow 48.31
29 20-15 415-48194 Tube – left hand – tank to union overflow 210.05
17 13-4 415-33167-30 Tube – main landing gear brake NM!
3 4-40 415-14002-4 Tube – pitot – static 164.02
29 20-19 415-48068 Tube – primer to firewall 19.90
29 20-17 F48152 Tube – tee to left wing tank overflow 32.39
29 20-18 F48067 Tube – tee to primer 100.49
29 20-9 415-48110 Tube – tee to shut off 27.90
29 20-9 F48149 Tube – tee to shut off 35.61
29 20-12 F48156 Tube – tee to tank right hand overflow 38.09
16 12-65 415-33201-23 Tube (std. inner tube with type T.R. – 12 valves) NM!
15 12-34 SK-58 Tube assembly – brake, main landing gear, lower leg 319.43
28 20-2 F48167 Tube assembly – firewall to fuselage tank (pressure) 34.73
27 19-57 F48075 Tube assembly – firewall to primer 54.61
26 19-6 415-48060 Tube assembly – fuel system – left to right tank 83.84
27 19-38 415-48062 Tube assembly – fuel tank to right tank 22.23
27 19-29 415-48063 Tube assembly – fuselage tank to firewall 30.71
17 13-12 415-33428 Tube assembly – hydraulic brake cylinder to front 29.59
beam
17 13-1 415-33429 Tube assembly – main landing gear brake 29.19
15 12-23 F33232 Tube assembly – main landing gear, oleo strut cylinder NM!
16 F33457-L Tube assembly – main landing gear, upper leg, left 27.32
16 F33457-R Tube assembly – main landing gear, upper leg, right 27.32
26 19-1 415-47016 Tube assembly – oil pressure – gauge to firewall 70.70
3 24-11 F51002 Tube assembly – pitot 554.63
39 24-11 F51002 Tube assembly – pitot 554.63
27 19-35 415-48068 Tube assembly – primer to firewall 19.90
27 19-31 415-48064 Tube assembly – return – firewall to fuselage tank 19.36
29 20-3 F48148 Tube assembly – shut off to firewall 32.49
27 19-33 F48067 Tube assembly – tee to primer 100.49
29 20-3 415-48165 Tube assembly – union to firewall 29.59
27 19-37 415-48061 Tube assembly – wing tank to firewall 177.20
17 13 415-33429 Tube assembly main landing gear brake 29.19
27 19-63 415-48096 Tube, Front Support 90.89
27 19-64 415-48076 Tube, Rear Support 67.76
7 Tubing – rubber – 3/16 ID x 5/16 OD x 1-1/4
7 8-6 415-52275 Tubing assembly – trim wire 224.32
33 21-42 415-52113 U Joint – shaft and column 438.39
