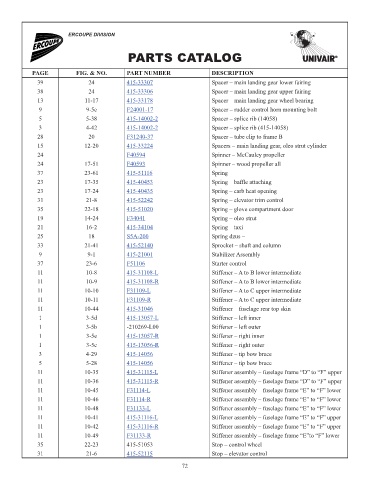

Page 77 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

PAGE FIG. & NO. PART NUMBER DESCRIPTION
39 24 415-33307 Spacer – main landing gear lower fairing 6.01
38 24 415-33306 Spacer – main landing gear upper fairing 6.01
13 11-17 415-33178 Spacer – main landing gear wheel bearing 35.05
9 9-5e F24001-17 Spacer – rudder control horn mounting bolt 2.27
5 5-38 415-14002-2 Spacer – splice rib (14058) 1.16
3 4-42 415-14002-2 Spacer – splice rib (415-14058) 1.16
28 20 F31240-37 Spacer – tube clip to frame B 14.93
15 12-20 415-33224 Spacers – main landing gear, oleo strut cylinder 21.38
24 F40594 Spinner – McCauley propeller 508.10
24 17-51 F40593 Spinner – wood propeller all 613.98
37 23-61 415-51116 Spring 1.61
23 17-35 415-40453 Spring – baffle attaching 8.27
23 17-24 415-40435 Spring – carb heat opening 21.79
31 21-8 415-52242 Spring – elevator trim control 5.67
35 22-18 415-51020 Spring – glove compartment door 6.23
19 14-24 F34041 Spring – oleo strut 38.56
21 16-2 415-34104 Spring – taxi 31.91
25 18 S5A-200 Spring dzus – 2.98
33 21-41 415-52140 Sprocket – shaft and column 109.99
9 9-1 415-21001 Stabilizer Assembly 13437.89
37 23-6 F51106 Starter control 428.47
11 10-8 415-31108-L Stiffener – A to B lower intermediate 21.34
11 10-9 415-31108-R Stiffener – A to B lower intermediate 21.34
11 10-10 F31109-L Stiffener – A to C upper intermediate 93.92
11 10-11 F31109-R Stiffener – A to C upper intermediate 93.92
11 10-44 415-31046 Stiffener – fuselage rear top skin 656.01
1 3-5d 415-13057-L Stiffener – left inner 43.64
1 3-5b -210269-L00 Stiffener – left outer 10.36
1 3-5e 415-13057-R Stiffener – right inner 43.64
1 3-5c 415-13056-R Stiffener – right outer 23.90
3 4-29 415-14056 Stiffener – tip bow brace 5.67
5 5-28 415-14056 Stiffener – tip bow brace 5.67
11 10-35 415-31115-L Stiffener assembly – fuselage frame “D” to “F” upper 36.69
11 10-36 415-31115-R Stiffener assembly – fuselage frame “D” to “F” upper 36.69
11 10-45 F31114-L Stiffener assembly – fuselage frame “E” to “F” lower 45.47
11 10-46 F31114-R Stiffener assembly – fuselage frame “E” to “F” lower 45.47
11 10-48 F31133-L Stiffener assembly – fuselage frame “E” to “F” lower 55.94
11 10-41 415-31116-L Stiffener assembly – fuselage frame “E” to “F” upper 36.69
11 10-42 415-31116-R Stiffener assembly – fuselage frame “E” to “F” upper 36.69
11 10-49 F31133-R Stiffener assembly – fuselage frame “E”to “F” lower 55.94
35 22-23 415-51053 Stop – control wheel NM!
31 21-6 415-52115 Stop – elevator control 17.02
72
