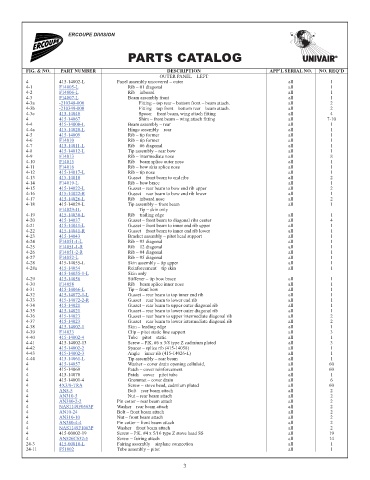

Page 8 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
OUTER PANEL – LEFT
4 415-14002-L Panel assembly uncovered – outer all 1 NM!
4-1 F14005-L Rib – #1 diagonal all 1 574.23
4-2 F14006-L Rib – inboard all 1 349.64
4-3 F14007-L Beam assembly front all 1 9985.62
4-3a -210348-000 Fitting – top rear – bottom front – beam attach. all 2 408.89
4-3b -210349-000 Fitting – top front – bottom rear – beam attach. all 2 408.89
4-3c 415-14040 Spacer – front beam, wing attach fitting all 4 4.65
4 415-14067 Shim – front beam – wing attach fitting all 7-10 2.89
4-4 415-14008-L Beam assembly – rear all 1 3319.46
4-4a 415-14020-L Hinge assembly – rear all 1 93.19
4-5 415-14009 Rib – tip former all 1 251.27
4-6 F14010 Rib – tip former all 1 192.22
4-7 415-14011-L Rib – #6 diagonal all 1 224.43
4-8 415-14012-L Tip assembly – rear bow all 1 984.12
4-9 F14013 Rib – intermediate nose all 8 142.82
4-10 F14015 Rib – beam splice outer nose all 1 71.14
4-11 F14016 Rib – bow skin splice nose all 1 71.14
4-12 415-14017-L Rib – tip nose all 1 169.20
4-13 415-14018 Gusset – front beam to end ribs all 2 2.54
4-14 F14019-L Rib – bow brace all 1 106.67
4-15 415-14022-L Gusset – rear beam to bow end rib upper all 2 2.54
4-16 415-14022-R Gusset – rear beam to bow end rib lower all 1 2.54
4-17 415-14026-L Rib – inboard nose all 2 168.39
4-18 415-14029-L Tip assembly – front beam all 1 NM!
F14029-1L Tip – skin only 293.67
4-19 415-14030-L Rib – trailing edge all 1 22.31
4-20 415-14037 Gusset – front beam to diagonal ribs center all 4 11.85
4-21 415-14041-L Gusset – front beam to inner end rib upper all 1 6.54
4-22 415-14041-R Gusset – front beam to inner end rib lower all 1 6.54
4-23 415-14043 Bracket assembly – pitot head support all 1 57.30
4-24 F14051-1-L Rib – #3 diagonal all 1 209.59
4-25 F14051-1-R Rib – #2 diagonal all 1 209.59
4-26 F14051-2-R Rib – #4 diagonal all 1 235.22
4-27 F14052-L Rib – #5 diagonal all 1 216.59
4-28 415-14055-L Skin assembly – tip upper all 1 NM!
4-28a 415-14054 Reinforcement – tip skin all 1 6.23
415-14055-1-L Skin only 125.03
4-29 415-14056 Stiffener – tip bow brace all 1 5.67
4-30 F14058 Rib – beam splice inner nose all 1 120.47
4-31 415-14066-L Tip – front bow all 1 944.76
4-32 415-14072-1-L Gusset – rear beam to top inner end rib all 1 4.01
4-33 415-14072-2-R Gusset – rear beam to lower end rib all 1 4.01
4-34 415-14021 Gusset – rear beam to upper outer diagonal rib all 1 2.54
4-35 415-14021 Gusset – rear beam to lower outer diagonal rib all 1 2.54
4-36 415-14023 Gusset – rear beam to upper intermediate diagonal rib all 2 2.54
4-37 415-14023 Gusset – rear beam to lower intermediate diagonal rib all 2 2.54
4-38 415-14002-1 Skin – leading edge all 1 771.32
4-39 F14033 Clip – pitot static line support all 3 11.10
4-40 415-14002-4 Tube – pitot – static all 1 164.02
4-41 415-14002-13 Screw – P.K. #6 x 3/8 type Z cadmium plated all 3 NM!
4-42 415-14002-2 Spacer – splice rib (415-14058) all 1 1.16
4-43 415-14002-3 Angle – inner rib (415-14026-L) all 1 42.96
4-44 415-14061-L Tip assembly – rear beam all 1 236.71
4 415-14057 Washer – cover drain opening celluloid, all 60 19.19
4 415-14069 Patch – cover reinforcement all 60 NM!
4 415-14070 Patch – cover – pitot tube all 1 NM!
4 415-14001-4 Grommet – cover drain all 6 NM!
4 4X3/8-TRA Screw – stove head, cadmium plated all 60 0.10
4 AN5-5 Bolt – rear beam attach all 2 0.78
4 AN310-5 Nut – rear beam attach all 2 2.20
4 AN380-2-2 Pin cotter – rear beam attach all 2 0.04
4 NAS1149F0563P Washer – rear beam attach all 2 0.18
4 AN10-24 Bolt – front beam attach all 2 37.70
4 AN310-10 Nut – front beam attach all 2 7.60
4 AN380-4-4 Pin cotter – front beam attach all 2 0.47
4 NAS1149F1063P Washer – front beam attach all 2 0.28
4 415-00002-19 Screw – P.K. #4 x 5/16 type Z stove head SS all 19 NM!
4 AN526C632-5 Screw – fairing attach all 14 1.01
24-3 415-00010-L Fairing assembly – airplane connection all 1 73.74
24-11 F51002 Tube assembly – pitot all 1 554.63
