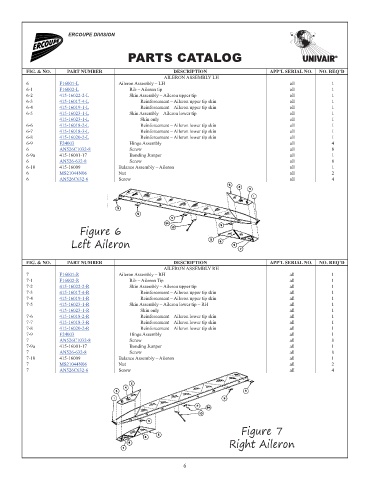

Page 11 - Ercoupe Parts Manual

ERCOUPE DIVISION

PARTS CATALOG

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
AILERON ASSEMBLY LH
6 F16001-L Aileron Assembly – LH all 1 2689.93
6-1 F16002-L Rib – Aileron tip all 1 23.34
6-2 415-16022-2-L Skin Assembly – Aileron upper tip all 1 138.68
6-3 415-16017-4-L Reinforcement – Aileron upper tip skin all 1 7.95
6-4 415-16019-1-L Reinforcement – Aileron upper tip skin all 1 7.95
6-5 415-16023-1-L Skin Assembly – Aileron lower tip all 1 212.53
415-16023-1-L Skin only all 1 212.53
6-6 415-16018-2-L Reinforcement – Aileron lower tip skin all 1 7.95
6-7 415-16018-3-L Reinforcement – Aileron lower tip skin all 1 7.95
6-8 415-16020-2-L Reinforcement – Aileron lower tip skin all 1 7.95
6-9 F24003 Hinge Assembly all 4 43.26
6 AN526C1032-8 Screw all 8 0.92
6-9a 415-16001-17 Bonding Jumper all 1 NM!
6 AN526-632-8 Screw all 8 0.18
6-10 415-16009 Balance Assembly – Aileron all 1 NM!
6 MS21044N06 Nut all 2 0.44
6 AN526C632-6 Screw all 4 0.38

Figure 6

Left Aileron

FIG. & NO. PART NUMBER DESCRIPTION APP’L SERIAL NO. NO. REQ’D
AILERON ASSEMBLY RH
7 F16001-R Aileron Assembly – RH all 1 2689.93
7-1 F16002-R Rib – Aileron Tip all 1 23.34
7-2 415-16022-2-R Skin Assembly – Aileron upper tip all 1 185.48
7-3 415-16017-4-R Reinforcement – Aileron upper tip skin all 1 7.95
7-4 415-16019-1-R Reinforcement – Aileron upper tip skin all 1 7.95
7-5 415-16023-1-R Skin Assembly – Aileron lower tip – RH all 1 212.53
415-16023-1-R Skin only all 1 212.53
7-6 415-16018-2-R Reinforcement – Aileron lower tip skin all 1 7.95
7-7 415-16018-3-R Reinforcement – Aileron lower tip skin all 1 7.95
7-8 415-16020-2-R Reinforcement – Aileron lower tip skin all 1 7.95
7-9 F24003 Hinge Assembly all 1 43.26
7 AN526C1032-8 Screw all 8 0.92
7-9a 415-16001-17 Bonding Jumper all 1 NM!
7 AN526-632-8 Screw all 8 0.18
7-10 415-16009 Balance Assembly – Aileron all 1 NM!
7 MS21044N06 Nut all 2 0.44
7 AN526C632-6 Screw all 4 0.38

Figure 7

Right Aileron
