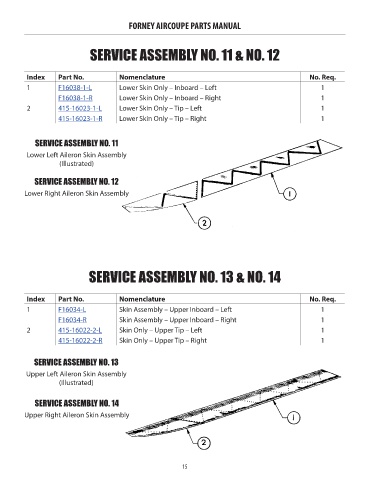

FORNEY AIRCOUPE PARTS MANUAL
SERVICE ASSEMBLY NO. 11 & NO. 12
Index Part No. Nomenclature No. Req. Price
1 F16038-1-L Lower Skin Only – Inboard – Left 1 311.61
F16038-1-R Lower Skin Only – Inboard – Right 1 311.61
2 415-16023-1-L Lower Skin Only – Tip – Left 1 212.53
415-16023-1-R Lower Skin Only – Tip – Right 1 212.53
SERVICE ASSEMBLY NO. 11
Lower Left Aileron Skin Assembly
(Illustrated)
SERVICE ASSEMBLY NO. 12
Lower Right Aileron Skin Assembly
SERVICE ASSEMBLY NO. 13 & NO. 14
Index Part No. Nomenclature No. Req. Price
1 F16034-L Skin Assembly – Upper Inboard – Left 1 1966.95
F16034-R Skin Assembly – Upper Inboard – Right 1 1966.95
2 415-16022-2-L Skin Only – Upper Tip – Left 1 138.68
415-16022-2-R Skin Only – Upper Tip – Right 1 185.48
SERVICE ASSEMBLY NO. 13
Upper Left Aileron Skin Assembly
(Illustrated)
SERVICE ASSEMBLY NO. 14
Upper Right Aileron Skin Assembly
