FORNEY AIRCOUPE PARTS MANUAL

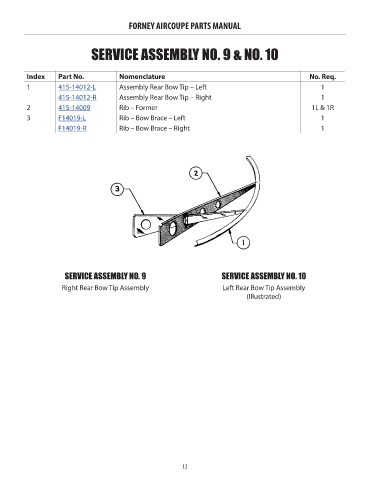

SERVICE ASSEMBLY NO. 9 & NO. 10
Index Part No. Nomenclature No. Req. Price
1 415-14012-L Assembly Rear Bow Tip – Left 1 984.12
415-14012-R Assembly Rear Bow Tip – Right 1 984.12
2 415-14009 Rib – Former 1L & 1R 251.27
3 F14019-L Rib – Bow Brace – Left 1 106.67
F14019-R Rib – Bow Brace – Right 1 106.67
SERVICE ASSEMBLY NO. 9 SERVICE ASSEMBLY NO. 10
Right Rear Bow Tip Assembly Left Rear Bow Tip Assembly
(Illustrated)
12
