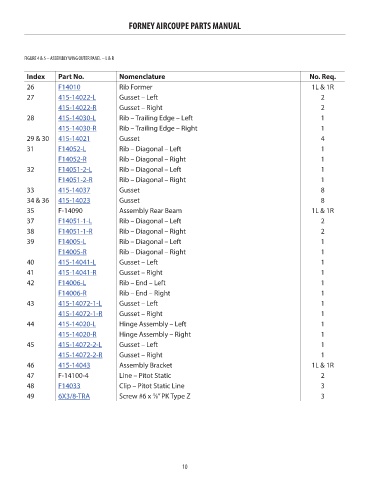

FORNEY AIRCOUPE PARTS MANUAL

FIGURE 4 & 5 – ASSEMBLY WING OUTER PANEL – L & R

Index Part No. Nomenclature No. Req. Price
26 F14010 Rib Former 1L & 1R 192.22
27 415-14022-L Gusset – Left 2 2.54
415-14022-R Gusset – Right 2 2.54
28 415-14030-L Rib – Trailing Edge – Left 1 22.31

415-14030-R Rib – Trailing Edge – Right 1 22.31
29 & 30 415-14021 Gusset 4 2.54
31 F14052-L Rib – Diagonal – Left 1 216.59
F14052-R Rib – Diagonal – Right 1 216.59
32 F14051-2-L Rib – Diagonal – Left 1 235.22
F14051-2-R Rib – Diagonal – Right 1 235.22
33 415-14037 Gusset 8 11.85
34 & 36 415-14023 Gusset 8 2.54
35 F-14090 Assembly Rear Beam 1L & 1R NM!

37 F14051-1-L Rib – Diagonal – Left 2 209.59
38 F14051-1-R Rib – Diagonal – Right 2 209.59
39 F14005-L Rib – Diagonal – Left 1 574.23
F14005-R Rib – Diagonal – Right 1 574.23
40 415-14041-L Gusset – Left 1 6.54
41 415-14041-R Gusset – Right 1 6.54
42 F14006-L Rib – End – Left 1 349.64

F14006-R Rib – End – Right 1 349.64
43 415-14072-1-L Gusset – Left 1 4.01
415-14072-1-R Gusset – Right 1 4.01
44 415-14020-L Hinge Assembly – Left 1 93.19
415-14020-R Hinge Assembly – Right 1 93.19
45 415-14072-2-L Gusset – Left 1 4.01
415-14072-2-R Gusset – Right 1 4.01
46 415-14043 Assembly Bracket 1L & 1R 57.30
47 F-14100-4 Line – Pitot Static 2 NM!

48 F14033 Clip – Pitot Static Line 3 11.10
49 6X3/8-TRA Screw #6 x ⁄8” PK Type Z 3 0.06
3

10
