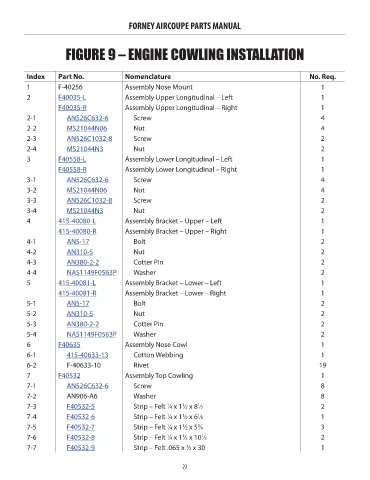

FORNEY AIRCOUPE PARTS MANUAL

FIGURE 9 – ENGINE COWLING INSTALLATION

Index Part No. Nomenclature No. Req. Price
1 F-40256 Assembly Nose Mount 1 NM!
2 F40035-L Assembly Upper Longitudinal – Left 1 307.40
F40035-R Assembly Upper Longitudinal – Right 1 307.40
2-1 AN526C632-6 Screw 4 0.38

2-2 MS21044N06 Nut 4 0.44
2-3 AN526C1032-8 Screw 2 0.92
2-4 MS21044N3 Nut 2 0.51
3 F40558-L Assembly Lower Longitudinal – Left 1 244.41
F40558-R Assembly Lower Longitudinal – Right 1 244.41
3-1 AN526C632-6 Screw 4 0.38
3-2 MS21044N06 Nut 4 0.44
3-3 AN526C1032-8 Screw 2 0.92
3-4 MS21044N3 Nut 2 0.51

4 415-40080-L Assembly Bracket – Upper – Left 1 105.74
415-40080-R Assembly Bracket – Upper – Right 1 105.74
4-1 AN5-17 Bolt 2 1.64
4-2 AN310-5 Nut 2 2.20
4-3 AN380-2-2 Cotter Pin 2 0.04
4-4 NAS1149F0563P Washer 2 0.18
5 415-40081-L Assembly Bracket – Lower – Left 1 54.38

415-40081-R Assembly Bracket – Lower – Right 1 54.38
5-1 AN5-17 Bolt 2 1.64
5-2 AN310-5 Nut 2 2.20
5-3 AN380-2-2 Cotter Pin 2 0.04
5-4 NAS1149F0563P Washer 2 0.18
6 F40635 Assembly Nose Cowl 1 329.34
6-1 415-40633-13 Cotton Webbing 1 3.58
6-2 F-40633-10 Rivet 19 NM!
7 F40532 Assembly Top Cowling 1 1072.63

7-1 AN526C632-6 Screw 8 0.38
7-2 AN906-A6 Washer 8 NM!
7-3 F40532-5 Strip – Felt ⁄4 x 1 ⁄2 x 8 ⁄2 2 14.63
1
1
1
7-4 F40532-6 Strip – Felt ⁄4 x 1 ⁄2 x 6 ⁄8 1 14.30
1
1
1
7-5 F40532-7 Strip – Felt ⁄4 x 1 ⁄2 x 5 ⁄4 3 10.37
1
1
3
7-6 F40532-8 Strip – Felt ⁄4 x 1 ⁄2 x 10 ⁄2 2 8.53
1
1
1
7-7 F40532-9 Strip – Felt .065 x ⁄2 x 30 1 27.90
1
22
