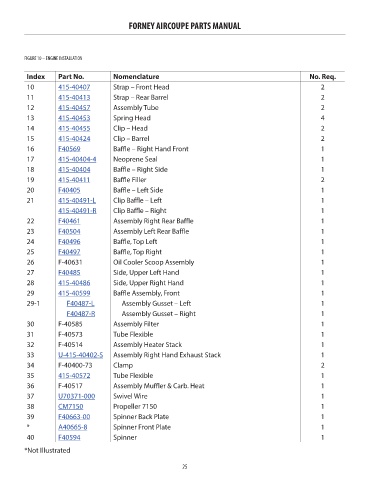

FORNEY AIRCOUPE PARTS MANUAL

FIGURE 10 – ENGINE INSTALLATION

Index Part No. Nomenclature No. Req. Price
10 415-40407 Strap – Front Head 2 64.98
11 415-40413 Strap – Rear Barrel 2 24.55
12 415-40457 Assembly Tube 2 108.91
13 415-40453 Spring Head 4 8.27

14 415-40455 Clip – Head 2 7.10
15 415-40424 Clip – Barrel 2 4.81
16 F40569 Baffle – Right Hand Front 1 83.12
17 415-40404-4 Neoprene Seal 1 24.21
18 415-40404 Baffle – Right Side 1 212.27
19 415-40411 Baffle Filler 2 19.69
20 F40405 Baffle – Left Side 1 221.04
21 415-40491-L Clip Baffle – Left 1 2.90
415-40491-R Clip Baffle – Right 1 2.90

22 F40461 Assembly Right Rear Baffle 1 526.46
23 F40504 Assembly Left Rear Baffle 1 310.14
24 F40496 Baffle, Top Left 1 150.95
25 F40497 Baffle, Top Right 1 147.26
26 F-40631 Oil Cooler Scoop Assembly 1 NM!
27 F40485 Side, Upper Left Hand 1 46.08
28 415-40486 Side, Upper Right Hand 1 24.48

29 415-40599 Baffle Assembly, Front 1 312.43
29-1 F40487-L Assembly Gusset – Left 1 515.41
F40487-R Assembly Gusset – Right 1 515.41
30 F-40585 Assembly Filter 1 NM!
31 F-40573 Tube Flexible 1 NM!
32 F-40514 Assembly Heater Stack 1 NM!
33 U-415-40402-S Assembly Right Hand Exhaust Stack 1 1418.49
34 F-40400-73 Clamp 2 NM!
35 415-40572 Tube Flexible 1 98.81

36 F-40517 Assembly Muffler & Carb. Heat 1 NM!
37 U70371-000 Swivel Wire 1 62.65
38 CM7150 Propeller 7150 1 8546.05
39 F40663-00 Spinner Back Plate 1 422.28
* A40665-8 Spinner Front Plate 1 150.56
40 F40594 Spinner 1 508.10

*Not Illustrated

25
