FORNEY AIRCOUPE PARTS MANUAL

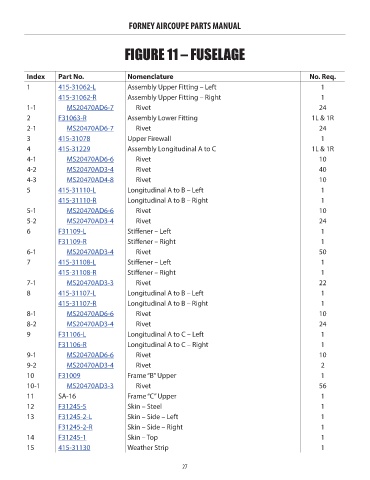

FIGURE 11 – FUSELAGE

Index Part No. Nomenclature No. Req. Price
1 415-31062-L Assembly Upper Fitting – Left 1 263.04
415-31062-R Assembly Upper Fitting – Right 1 263.04
1-1 MS20470AD6-7 Rivet 24 0.00
2 F31063-R Assembly Lower Fitting 1L & 1R 293.90

2-1 MS20470AD6-7 Rivet 24 0.00
3 415-31078 Upper Firewall 1 1578.82
4 415-31229 Assembly Longitudinal A to C 1L & 1R 99.05
4-1 MS20470AD6-6 Rivet 10 0.00
4-2 MS20470AD3-4 Rivet 40 0.00
4-3 MS20470AD4-8 Rivet 10 0.00
5 415-31110-L Longitudinal A to B – Left 1 42.68
415-31110-R Longitudinal A to B – Right 1 42.68
5-1 MS20470AD6-6 Rivet 10 0.00

5-2 MS20470AD3-4 Rivet 24 0.00
6 F31109-L Stiffener – Left 1 93.92
F31109-R Stiffener – Right 1 93.92
6-1 MS20470AD3-4 Rivet 50 0.00
7 415-31108-L Stiffener – Left 1 21.34
415-31108-R Stiffener – Right 1 21.34
7-1 MS20470AD3-3 Rivet 22 0.00

8 415-31107-L Longitudinal A to B – Left 1 174.00
415-31107-R Longitudinal A to B – Right 1 174.00
8-1 MS20470AD6-6 Rivet 10 0.00
8-2 MS20470AD3-4 Rivet 24 0.00
9 F31106-L Longitudinal A to C – Left 1 311.27
F31106-R Longitudinal A to C – Right 1 311.27
9-1 MS20470AD6-6 Rivet 10 0.00
9-2 MS20470AD3-4 Rivet 2 0.00
10 F31009 Frame “B” Upper 1 109.95

10-1 MS20470AD3-3 Rivet 56 0.00
11 SA-16 Frame “C” Upper 1 NM!
12 F31245-5 Skin – Steel 1 435.75
13 F31245-2-L Skin – Side – Left 1 715.03
F31245-2-R Skin – Side – Right 1 715.03
14 F31245-1 Skin – Top 1 250.29
15 415-31130 Weather Strip 1 39.24

27
