FORNEY AIRCOUPE PARTS MANUAL

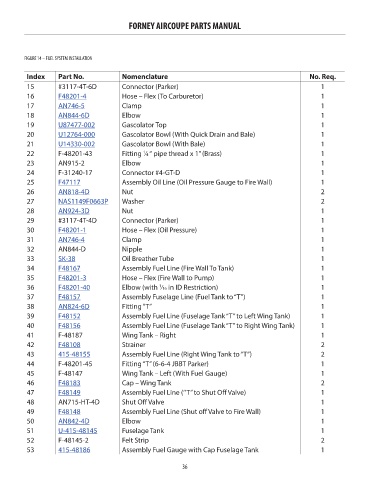

FIGURE 14 – FUEL SYSTEM INSTALLATION

Index Part No. Nomenclature No. Req. Price
15 #3117-4T-6D Connector (Parker) 1 NM!
16 F48201-4 Hose – Flex (To Carburetor) 1 88.78
17 AN746-5 Clamp 1 1.89
18 AN844-6D Elbow 1 38.89
19 U87477-002 Gascolator Top 1 135.42
20 U12764-000 Gascolator Bowl (With Quick Drain and Bale) 1 150.74
21 U14330-002 Gascolator Bowl (With Bale) 1 331.37
22 F-48201-43 Fitting ⁄4 “ pipe thread x 1” (Brass) 1 NM!
1
23 AN915-2 Elbow 1 NM!
24 F-31240-17 Connector #4-GT-D 1 NM!
25 F47117 Assembly Oil Line (Oil Pressure Gauge to Fire Wall) 1 35.81
26 AN818-4D Nut 2 1.26
27 NAS1149F0663P Washer 2 0.11
28 AN924-3D Nut 1 3.24
29 #3117-4T-4D Connector (Parker) 1 NM!
30 F48201-1 Hose – Flex (Oil Pressure) 1 113.94
31 AN746-4 Clamp 1 1.89
32 AN844-D Nipple 1 NM!
33 SK-38 Oil Breather Tube 1 470.70
34 F48167 Assembly Fuel Line (Fire Wall To Tank) 1 34.73
35 F48201-3 Hose – Flex (Fire Wall to Pump) 1 105.08
36 F48201-40 Elbow (with ⁄16 in ID Restriction) 1 112.90
1
37 F48157 Assembly Fuselage Line (Fuel Tank to “T”) 1 48.31
38 AN824-6D Fitting “T” 1 22.75
39 F48152 Assembly Fuel Line (Fuselage Tank “T” to Left Wing Tank) 1 32.39
40 F48156 Assembly Fuel Line (Fuselage Tank “T” to Right Wing Tank) 1 38.09
41 F-48187 Wing Tank – Right 1 NM!
42 F48108 Strainer 2 144.36
43 415-48155 Assembly Fuel Line (Right Wing Tank to “T”) 2 21.87
44 F-48201-45 Fitting “T” (6-6-4 JBBT Parker) 1 NM!
45 F-48147 Wing Tank – Left (With Fuel Gauge) 1 NM!
46 F48183 Cap – Wing Tank 2 334.69
47 F48149 Assembly Fuel Line (‘’T” to Shut Off Valve) 1 35.61
48 AN715-HT-4D Shut Off Valve 1 NM!
49 F48148 Assembly Fuel Line (Shut off Valve to Fire Wall) 1 32.49
50 AN842-4D Elbow 1 44.07
51 U-415-48145 Fuselage Tank 1 3109.08
52 F-48145-2 Felt Strip 2 NM!
53 415-48186 Assembly Fuel Gauge with Cap Fuselage Tank 1 187.29

36
