FORNEY AIRCOUPE PARTS MANUAL

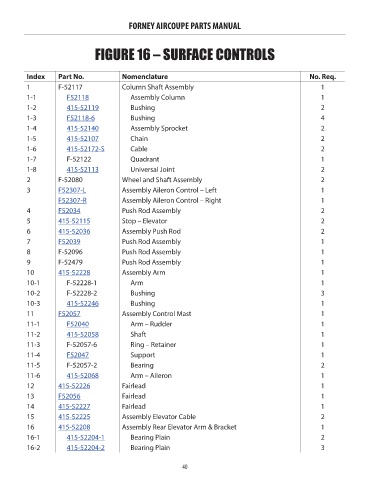

FIGURE 16 – SURFACE CONTROLS

Index Part No. Nomenclature No. Req. Price
1 F-52117 Column Shaft Assembly 1 NM!
1-1 F52118 Assembly Column 1 1560.73
1-2 415-52119 Bushing 2 87.90
1-3 F52118-6 Bushing 4 3.40

1-4 415-52140 Assembly Sprocket 2 109.99
1-5 415-52107 Chain 2 35.66
1-6 415-52172-S Cable 2 164.41
1-7 F-52122 Quadrant 1 NM!
1-8 415-52113 Universal Joint 2 438.39
2 F-52080 Wheel and Shaft Assembly 2 NM!
3 F52307-L Assembly Aileron Control – Left 1 860.58
F52307-R Assembly Aileron Control – Right 1 860.58
4 F52034 Push Rod Assembly 2 240.02

5 415-52115 Stop – Elevator 2 17.02
6 415-52036 Assembly Push Rod 2 263.83
7 F52039 Push Rod Assembly 1 108.14
8 F-52096 Push Rod Assembly 1 NM!
9 F-52479 Push Rod Assembly 1 NM!
10 415-52228 Assembly Arm 1 58.81
10-1 F-52228-1 Arm 1 NM!

10-2 F-52228-2 Bushing 3 NM!
10-3 415-52246 Bushing 1 4.01
11 F52057 Assembly Control Mast 1 1024.59
11-1 F52040 Arm – Rudder 1 124.64
11-2 415-52058 Shaft 1 99.05
11-3 F-52057-6 Ring – Retainer 1 NM!
11-4 F52047 Support 1 711.53
11-5 F-52057-2 Bearing 2 NM!
11-6 415-52068 Arm – Aileron 1 480.13

12 415-52226 Fairlead 1 5.05
13 F52056 Fairlead 1 11.35
14 415-52227 Fairlead 1 7.10
15 415-52225 Assembly Elevator Cable 2 324.20
16 415-52208 Assembly Rear Elevator Arm & Bracket 1 233.37
16-1 415-52204-1 Bearing Plain 2 6.54
16-2 415-52204-2 Bearing Plain 3 6.54

40
