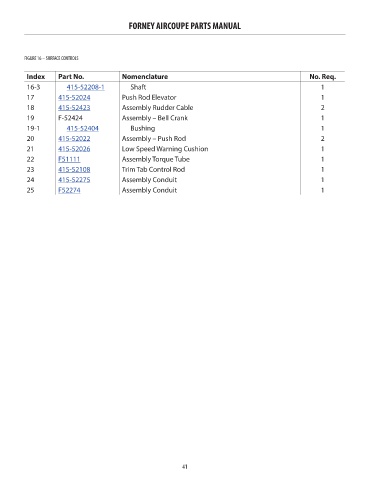

FORNEY AIRCOUPE PARTS MANUAL
FIGURE 16 – SURFACE CONTROLS
Index Part No. Nomenclature No. Req. Price
16-3 415-52208-1 Shaft 1 22.23
17 415-52024 Push Rod Elevator 1 133.78
18 415-52423 Assembly Rudder Cable 2 119.34
19 F-52424 Assembly – Bell Crank 1 NM!
19-1 415-52404 Bushing 1 4.61
20 415-52022 Assembly – Push Rod 2 372.27
21 415-52026 Low Speed Warning Cushion 1 31.31
22 F51111 Assembly Torque Tube 1 175.28
23 415-52108 Trim Tab Control Rod 1 242.08
24 415-52275 Assembly Conduit 1 224.32
25 F52274 Assembly Conduit 1 140.43
41
