FORNEY AIRCOUPE PARTS MANUAL

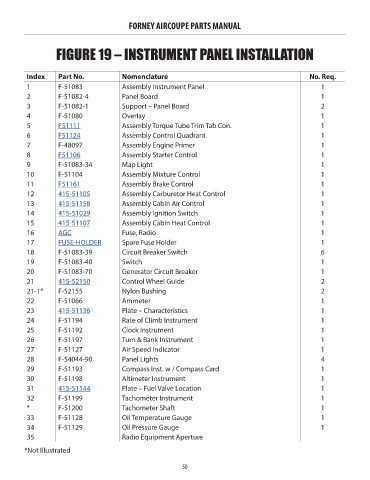

FIGURE 19 – INSTRUMENT PANEL INSTALLATION

Index Part No. Nomenclature No. Req. Price
1 F-51083 Assembly Instrument Panel 1 NM!
2 F-51082-4 Panel Board 1 NM!
3 F-51082-1 Support – Panel Board 2 NM!
4 F-51080 Overlay 1 NM!
5 F51111 Assembly Torque Tube Trim Tab Con. 1 175.28
6 F51124 Assembly Control Quadrant 1 1017.51
7 F-48097 Assembly Engine Primer 1 NM!
8 F51106 Assembly Starter Control 1 428.47
9 F-51083-34 Map Light 1 NM!
10 F-51104 Assembly Mixture Control 1 NM!
11 F51161 Assembly Brake Control 1 254.31
12 415-51105 Assembly Carburetor Heat Control 1 225.31
13 415-51158 Assembly Cabin Air Control 1 134.28
14 415-51029 Assembly Ignition Switch 1 NM!
15 415-51107 Assembly Cabin Heat Control 1 107.46
16 AGC Fuse, Radio 1 4.27
17 FUSE-HOLDER Spare Fuse Holder 1 3.02
18 F-51083-39 Circuit Breaker Switch 6 NM!
19 F-51083-40 Switch 1 NM!
20 F-51083-70 Generator Circuit Breaker 1 NM!
21 415-52150 Control Wheel Guide 2 110.16
21-1* F-52155 Nylon Bushing 2 NM!
22 F-51066 Ammeter 1 NM!
23 415-51136 Plate – Characteristics 1 15.62
24 F-51194 Rate of Climb Instrument 1 NM!
25 F-51192 Clock Instrument 1 NM!
26 F-51197 Turn & Bank Instrument 1 NM!
27 F-51127 Air Speed Indicator 1 NM!
28 F-54044-90 Panel Lights 4 NM!
29 F-51193 Compass Inst. w / Compass Card 1 NM!
30 F-51198 Altimeter Instrument 1 NM!
31 415-51144 Plate – Fuel Valve Location 1 7.68
32 F-51199 Tachometer Instrument 1 NM!
* F-51200 Tachometer Shaft 1 NM!
33 F-51128 Oil Temperature Gauge 1 NM!
34 F-51129 Oil Pressure Gauge 1 NM!
35 Radio Equipment Aperture
