FORNEY AIRCOUPE PARTS MANUAL

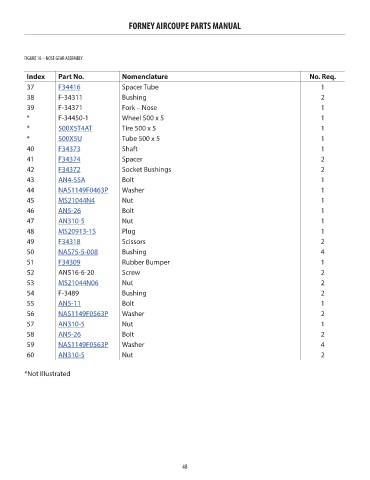

FIGURE 18 – NOSE GEAR ASSEMBLY
Index Part No. Nomenclature No. Req. Price
37 F34416 Spacer Tube 1 64.95
38 F-34311 Bushing 2 NM!
39 F-34371 Fork – Nose 1 NM!
* F-34450-1 Wheel 500 x 5 1 NM!
* 500X5T4AT Tire 500 x 5 1 101.52
* 500X5U Tube 500 x 5 1 114.09
40 F34373 Shaft 1 196.77
41 F34374 Spacer 2 45.21
42 F34372 Socket Bushings 2 79.53
43 AN4-55A Bolt 1 10.00
44 NAS1149F0463P Washer 1 0.06
45 MS21044N4 Nut 1 0.30
46 AN5-26 Bolt 1 1.14
47 AN310-5 Nut 1 2.20
48 MS20913-1S Plug 1 8.00
49 F34318 Scissors 2 407.34
50 NAS75-5-008 Bushing 4 7.26
51 F34309 Rubber Bumper 1 31.10
52 AN516-6-20 Screw 2 NM!
53 MS21044N06 Nut 2 0.44
54 F-3489 Bushing 2 NM!
55 AN5-11 Bolt 1 0.68
56 NAS1149F0563P Washer 2 0.18
57 AN310-5 Nut 1 2.20
58 AN5-26 Bolt 2 1.14
59 NAS1149F0563P Washer 4 0.18
60 AN310-5 Nut 2 2.20
*Not Illustrated
