FORNEY AIRCOUPE PARTS MANUAL

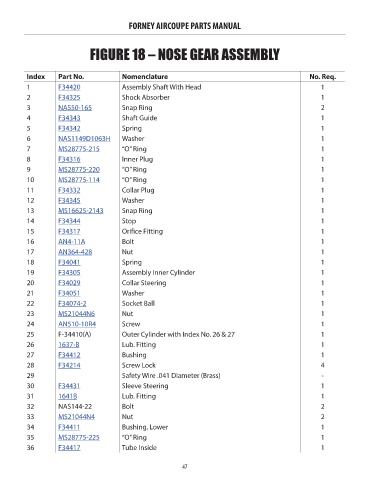

FIGURE 18 – NOSE GEAR ASSEMBLY

Index Part No. Nomenclature No. Req. Price
1 F34420 Assembly Shaft With Head 1 540.19
2 F34325 Shock Absorber 1 81.08
3 NAS50-165 Snap Ring 2 1.43
4 F34343 Shaft Guide 1 68.91

5 F34342 Spring 1 13.13
6 NAS1149D1063H Washer 1 0.72
7 MS28775-215 “O” Ring 1 2.50
8 F34316 Inner Plug 1 202.06
9 MS28775-220 “O” Ring 1 1.10
10 MS28775-114 “O” Ring 1 0.46
11 F34332 Collar Plug 1 66.22
12 F34345 Washer 1 28.04
13 MS16625-2143 Snap Ring 1 0.49

14 F34344 Stop 1 8.13
15 F34317 Orifice Fitting 1 61.61
16 AN4-11A Bolt 1 0.62
17 AN364-428 Nut 1 NM!
18 F34041 Spring 1 38.56
19 F34305 Assembly Inner Cylinder 1 1204.67
20 F34029 Collar Steering 1 308.01

21 F34051 Washer 1 21.93
22 F34074-2 Socket Ball 1 33.96
23 MS21044N6 Nut 1 0.58
24 AN510-10R4 Screw 1 NM!
25 F34410 Outer Cylinder with Index No. 26 & 27 1 NM!
26 1637-B Lubrication Fitting 1 2.85
27 F34412 Bushing 1 108.43
28 F34214 Screw Lock 4 18.32
29 Safety Wire .041 Diameter (Brass) - x

30 F34431 Sleeve Steering 1 475.11
31 1641B Lubrication Fitting 1 1.30
32 NAS144-22 Bolt 2 NM!
33 MS21044N4 Nut 2 0.30
34 F34411 Bushing, Lower 1 232.58
35 MS28775-225 “O” Ring 1 1.00
36 F34417 Tube Inside 1 84.98

47
