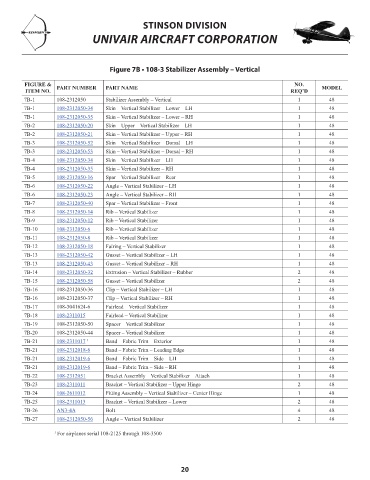

Figure 7B • 108-3 Stabilizer Assembly – Vertical

FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL PRICE
7B-1 108-2312050 Stabilizer Assembly – Vertical 1 48 NM!
7B-1 108-2312050-34 Skin – Vertical Stabilizer – Lower – LH 1 48 788.88
7B-1 108-2312050-35 Skin – Vertical Stabilizer – Lower – RH 1 48 788.88
7B-2 108-2312050-20 Skin – Upper – Vertical Stabilizer – LH 1 48 932.00
7B-2 108-2312050-21 Skin – Vertical Stabilizer – Upper – RH 1 48 932.00
7B-3 108-2312050-52 Skin – Vertical Stabilizer – Dorsal – LH 1 48 224.67
7B-3 108-2312050-53 Skin – Vertical Stabilizer – Dorsal – RH 1 48 134.70
7B-4 108-2312050-34 Skin – Vertical Stabilizer – LH 1 48 788.88
7B-4 108-2312050-35 Skin – Vertical Stabilizer – RH 1 48 788.88
7B-5 108-2312050-16 Spar – Vertical Stabilizer – Rear 1 48 242.26
7B-6 108-2312050-22 Angle – Vertical Stabilizer – LH 1 48 38.25
7B-6 108-2312050-23 Angle – Vertical Stabilizer – RH 1 48 38.25
7B-7 108-2312050-40 Spar – Vertical Stabilizer – Front 1 48 408.22
7B-8 108-2312050-14 Rib – Vertical Stabilizer 1 48 88.12
7B-9 108-2312050-12 Rib – Vertical Stabilizer 1 48 147.62
7B-10 108-2312050-6 Rib – Vertical Stabilizer 1 48 109.95
7B-11 108-2312050-8 Rib – Vertical Stabilizer 1 48 54.81
7B-12 108-2312050-18 Fairing – Vertical Stabilizer 1 48 95.09
7B-13 108-2312050-42 Gusset – Vertical Stabilizer – LH 1 48 92.35
7B-13 108-2312050-43 Gusset – Vertical Stabilizer – RH 1 48 92.35
7B-14 108-2312050-32 Extrusion – Vertical Stabilizer – Rubber 2 48 81.92
7B-15 108-2312050-58 Gusset – Vertical Stabilizer 2 48 37.04
7B-16 108-2312050-36 Clip – Vertical Stabilizer – LH 1 48 NM!
7B-16 108-2312050-37 Clip – Vertical Stabilizer – RH 1 48 NM!
7B-17 108-3041624-6 Fairlead – Vertical Stabilizer 1 48 NM!
7B-18 108-2311015 Fairlead – Vertical Stabilizer 1 48 17.12
7B-19 108-2312050-50 Spacer – Vertical Stabilizer 1 48 NM!
7B-20 108-2312050-44 Spacer – Vertical Stabilizer 1 48 NM!
7B-21 108-2311017 1 Band – Fabric Trim – Exterior 1 48 29.28
7B-21 108-2312018-6 Band – Fabric Trim – Leading Edge 1 48 19.43
7B-21 108-2312019-6 Band – Fabric Trim – Side – LH 1 48 75.63
7B-21 108-2312019-6 Band – Fabric Trim – Side – RH 1 48 75.63
7B-22 108-2312051 Bracket Assembly – Vertical Stabilizer – Attach 1 48 127.76
7B-23 108-2311011 Bracket – Vertical Stabilizer – Upper Hinge 2 48 13.52
7B-24 108-2611012 Fitting Assembly – Vertical Stabilizer – Center Hinge 1 48 199.64
7B-25 108-2311013 Bracket – Vertical Stabilizer – Lower 2 48 13.04
7B-26 AN3-4A Bolt 4 48 0.20
7B-27 108-2312050-56 Angle – Vertical Stabilizer 2 48 25.33

1 For airplanes serial 108-2125 through 108-3500
