P. 28

STINSON DIVISION
                                UNIVAIR AIRCRAFT CORPORATION

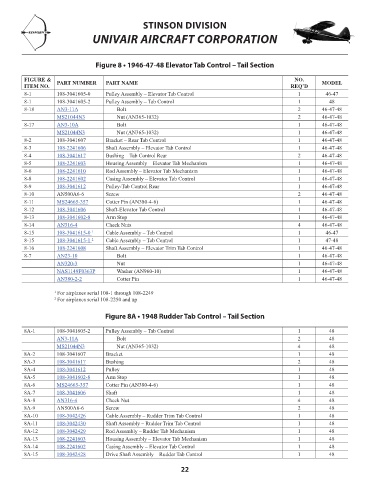

                                 Figure 8 • 1946-47-48 Elevator Tab Control – Tail Section


         FIGURE &                                                                                 NO.
         ITEM NO.   PART NUMBER     PART NAME                                                    REQ’D     MODEL                PRICE
         8-1        108-3041605-0   Pulley Assembly – Elevator Tab Control                          1        46-47              NM!
         8-1        108-3041605-2   Pulley Assembly – Tab Control                                   1         48                NM!
         8-18       AN3-11A             Bolt                                                        2       46-47-48            0.28
                    MS21044N3           Nut (AN365-1032)                                            2       46-47-48            0.51
         8-17       AN3-10A             Bolt                                                        1       46-47-48            0.46
                    MS21044N3           Nut (AN365-1032)                                            1       46-47-48            0.51
         8-2        108-3041607     Bracket – Rear Tab Control                                      1       46-47-48            NM!
         8-3        108-2241606     Shaft Assembly – Elevator Tab Control                           1       46-47-48            134.40
         8-4        108-3041617     Bushing – Tab Control Rear                                      2       46-47-48            28.65
         8-5        108-2241603     Housing Assembly – Elevator Tab Mechanism                       1       46-47-48            126.09
         8-6        108-2241610     Rod Assembly – Elevator Tab Mechanism                           1       46-47-48            237.95
         8-8        108-2241602     Casing Assembly – Elevator Tab Control                          1       46-47-48            202.62
         8-9        108-3041612     Pulley-Tab Control Rear                                         1       46-47-48            47.15
         8-10       AN500A6-6       Screw                                                           2       46-47-48            NM!
         8-11       MS24665-357     Cotter Pin (AN380-4-6)                                          1       46-47-48            0.08
         8-12       108-3041606     Shaft-Elevator Tab Control                                      1       46-47-48            84.28
         8-13       108-3041602-8   Arm Stop                                                        1       46-47-48            19.07
         8-14       AN316-4         Check Nuts                                                      4       46-47-48            0.22
         8-15       108-3041615-0  1  Cable Assembly – Tab Control                                  1        46-47              109.85
         8-15       108-3041615-1  2  Cable Assembly – Tab Control                                  1        47-48              129.66
         8-16       108-2241608     Shaft Assembly – Elevator Trim Tab Control                      1       46-47-48            540.41
         8-7        AN23-10             Bolt                                                        1       46-47-48            1.82
                    AN320-3             Nut                                                         1       46-47-48            1.00
                    NAS1149F0363P       Washer (AN960-10)                                           1       46-47-48            0.08
                    AN380-2-2           Cotter Pin                                                  1       46-47-48            0.04

                   1  For airplanes serial 108-1 through 108-2249
                   2  For airplanes serial 108-2250 and up

                                    Figure 8A • 1948 Rudder Tab Control – Tail Section


         8A-1       108-3041605-2   Pulley Assembly – Tab Control                                   1         48                NM!
                    AN3-11A             Bolt                                                        2         48                0.28
                    MS21044N3           Nut (AN365-1032)                                            4         48                0.51
         8A-2       108-3041607     Bracket                                                         1         48                NM!
         8A-3       108-3041617     Bushing                                                         2         48                28.65
         8A-4       108-3041612     Pulley                                                          1         48                47.15
         8A-5       108-3041602-8   Arm Stop                                                        1         48                19.07
         8A-6       MS24665-357     Cotter Pin (AN380-4-6)                                          1         48                0.08
         8A-7       108-3041606     Shaft                                                           1         48                84.28
         8A-8       AN316-4         Check Nut                                                       4         48                0.22
         8A-9       AN500A6-6       Screw                                                           2         48                NM!
         8A-10      108-3042426     Cable Assembly – Rudder Trim Tab Control                        1         48                188.23
         8A-11      108-3042430     Shaft Assembly – Rudder Trim Tab Control                        1         48                628.94
         8A-12      108-3042429     Rod Assembly – Rudder Tab Mechanism                             1         48                197.54
         8A-13      108-2241603     Housing Assembly – Elevator Tab Mechanism                       1         48                126.09
         8A-14      108-2241602     Casing Assembly – Elevator Tab Control                          1         48                202.62
         8A-15      108-3042428     Drive Shaft Assembly – Rudder Tab Control                       1         48                97.09
