P. 24
STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

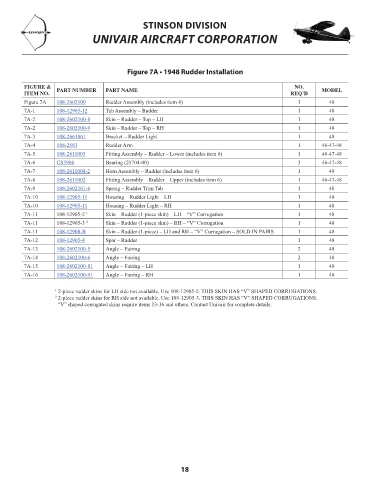

Figure 7A • 1948 Rudder Installation
FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL PRICE
Figure 7A 108-2602100 Rudder Assembly (includes item 4) 1 48 4725.18
7A-1 108-12905-12 Tab Assembly – Rudder 1 48 390.52
7A-2 108-2602100-8 Skin – Rudder – Top – LH 1 48 267.24
7A-2 108-2602100-9 Skin – Rudder – Top – RH 1 48 267.24
7A-3 108-2661001 Bracket – Rudder Light 1 48 84.61
7A-4 108-2583 Rudder Arm 1 46-47-48 181.53
7A-5 108-2611003 Fitting Assembly – Rudder – Lower (includes item 6) 1 46-47-48 191.14
7A-6 CS3906 Bearing (25704-00) 3 46-47-48 38.74
7A-7 108-2611008-2 Horn Assembly – Rudder (includes item 6) 1 48 235.10
7A-8 108-2611002 Fitting Assembly – Rudder – Upper (includes item 6) 1 46-47-48 82.06
7A-9 108-2602101-6 Spring – Rudder Trim Tab 1 48 18.25
7A-10 108-12905-11 Housing – Rudder Light – LH 1 48 99.08
7A-10 108-12905-11 Housing – Rudder Light – RH 1 48 99.08
7A-11 108-12905-2 1 Skin – Rudder (1-piece skin) – LH – “V” Corrugation 1 48 NM!
7A-11 108-12905-3 2 Skin – Rudder (1-piece skin) – RH – “V” Corrugation 1 48 NM!
7A-11 108-12908-B Skin – Rudder (1-piece) – LH and RH – “V” Currugation – SOLD IN PAIRS 1 48 353.82
7A-12 108-12905-4 Spar – Rudder 1 48 167.82
7A-13 108-2602100-5 Angle – Fairing 2 48 23.94
7A-14 108-2602100-6 Angle – Fairing 2 48 31.57
7A-15 108-2602100-81 Angle – Fairing – LH 1 48 17.02
7A-16 108-2602100-91 Angle – Fairing – RH 1 48 22.09
1 2-piece rudder skins for LH side not available. Use 108-12905-2. THIS SKIN HAS “V” SHAPED CORRUGATIONS.
2 2-piece rudder skins for RH side not available. Use 108-12905-3. THIS SKIN HAS “V” SHAPED CORRUGATIONS.
“V” shaped corrugated skins require items 13-16 and others. Contact Univair for complete details.
