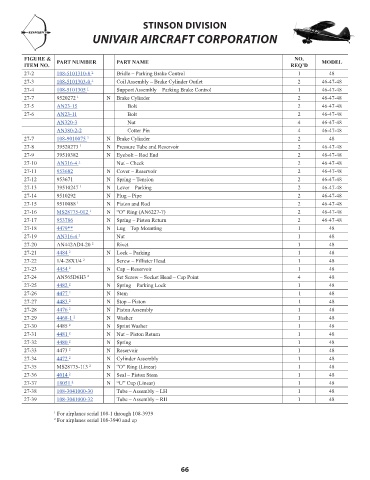

P. 72
STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION
FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
27-2 108-5101310-8 2 Bridle – Parking Brake Control 1 48 50.86
27-3 108-5101303-0 1 Coil Assembly – Brake Cylinder Outlet 2 46-47-48 479.44
27-4 108-5101305 1 Support Assembly – Parking Brake Control 1 46-47-48 104.94
27-7 9520272 1 N Brake Cylinder 2 46-47-48 NM!
27-5 AN23-15 Bolt 2 46-47-48 1.79
27-6 AN23-11 Bolt 2 46-47-48 3.76
AN320-3 Nut 4 46-47-48 1.00
AN380-2-2 Cotter Pin 4 46-47-48 0.04
27-7 108-9010075 2 N Brake Cylinder 2 48 1637.28
27-8 39520273 1 N Pressure Tube and Reservoir 2 46-47-48 NM!
27-9 39510382 N Eyebolt – Rod End 2 46-47-48 NM!
27-10 AN316-4 1 Nut – Check 2 46-47-48 0.22
27-11 953682 N Cover – Reservoir 2 46-47-48 75.79
27-12 953671 N Spring – Tension 2 46-47-48 NM!
27-13 39510247 1 N Lever – Parking 2 46-47-48 NM!
27-14 9510292 N Plug – Pipe 2 46-47-48 NM!
27-15 9510088 1 N Piston and Rod 2 46-47-48 NM!
27-16 MS28775-012 1 N “O” Ring (AN6227-7) 2 46-47-48 0.32
27-17 953786 N Spring – Piston Return 2 46-47-48 NM!
27-18 4479** N Lug – Top Mounting 1 48 106.29
27-19 AN316-4 2 Nut 1 48 0.22
27-20 AN442AD4-20 2 Rivet 1 48 NM!
27-21 4484 2 N Lock – Parking 1 48 66.03
27-22 1/4-28X1/4 2 Screw – Fillister Head 1 48 NM!
27-23 4454 2 N Cap – Reservoir 1 48 NM!
27-24 AN565D6H3 2 Set Screw – Socket Head – Cap Point 4 48 NM!
27-25 4482 2 N Spring – Parking Lock 1 48 5.36
27-26 4477 2 N Stem 1 48 206.85
27-27 4483 2 N Stop – Piston 1 48 94.58
27-28 4476 2 N Piston Assembly 1 48 142.76
27-29 4468-1 2 N Washer 1 48 3.42
27-30 4485 2 N Sprint Washer 1 48 NM!
27-31 4481 2 N Nut – Piston Return 1 48 NM!
27-32 4480 2 N Spring 1 48 16.58
27-33 4473 2 N Reservoir 1 48 NM!
27-34 4472 2 N Cylinder Assembly 1 48 NM!
27-35 MS28775-113 2 N “O” Ring (Linear) 1 48 NM!
27-36 4014 2 N Seal – Piston Stem 1 48 18.00
27-37 18051 2 N “U” Cup (Linear) 1 48 9.07
27-38 108-3041000-30 Tube – Assembly – LH 1 48 72.04
27-39 108-3041000-32 Tube – Assembly – RH 1 48 72.04
1 For airplanes serial 108-1 through 108-3939
2 For airplanes serial 108-3940 and up
66
