P. 74
STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION

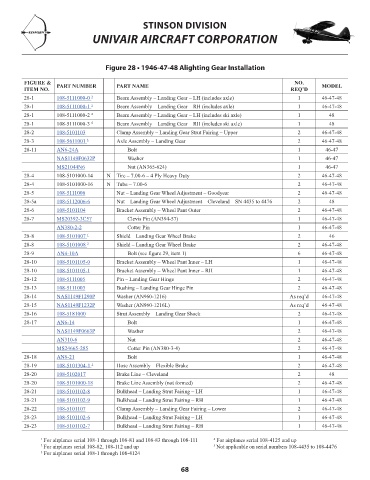

Figure 28 • 1946-47-48 Alighting Gear Installation
FIGURE & NO.
ITEM NO. PART NUMBER PART NAME REQ’D MODEL PRICE
28-1 108-5111000-0 3 Beam Assembly – Landing Gear – LH (includes axle) 1 46-47-48 3099.69
28-1 108-5111000-1 3 Beam Assembly – Landing Gear – RH (includes axle) 1 46-47-48 3099.69
28-1 108-5111000-2 4 Beam Assembly – Landing Gear – LH (includes ski axle) 1 48 NM!
28-1 108-5111000-3 4 Beam Assembly – Landing Gear – RH (includes ski axle) 1 48 NM!
28-2 108-5101103 Clamp Assembly – Landing Gear Strut Fairing – Upper 2 46-47-48 64.24
28-3 108-5611001 3 Axle Assembly – Landing Gear 2 46-47-48 1016.62
28-11 AN6-24A Bolt 1 46-47 1.20
NAS1149F0632P Washer 1 46-47 0.06
MS21044N6 Nut (AN365-624) 1 46-47 0.58
28-4 108-5101000-14 N Tire – 7.00-6 – 4 Ply Heavy Duty 2 46-47-48 NM!
28-4 108-5101000-16 N Tube – 7.00-6 2 46-47-48 NM!
28-5 108-5111006 Nut – Landing Gear Wheel Adjustment – Goodyear 2 46-47-48 88.44
28-5a 108-5112006-6 Nut – Landing Gear Wheel Adjustment – Cleveland – SN 4435 to 4476 2 48 57.23
28-6 108-5101104 Bracket Assembly – Wheel Pant Outer 2 46-47-48 187.87
28-7 MS20392-3C57 Clevis Pin (AN394-57) 1 46-47-48 3.16
AN380-2-2 Cotter Pin 1 46-47-48 0.04
28-8 108-5101007 1 Shield – Landing Gear Wheel Brake 2 46 10.42
28-8 108-5101008 2 Shield – Landing Gear Wheel Brake 2 46-47-48 16.58
28-9 AN4-10A Bolt (see figure 29, item 1) 6 46-47-48 0.26
28-10 108-5101105-0 Bracket Assembly – Wheel Pant Inner – LH 1 46-47-48 220.42
28-10 108-5101105-1 Bracket Assembly – Wheel Pant Inner – RH 1 46-47-48 233.09
28-12 108-5111005 Pin – Landing Gear Hinge 2 46-47-48 292.82
28-13 108-5111003 Bushing – Landing Gear Hinge Pin 2 46-47-48 63.82
28-14 NAS1149F1290P Washer (AN960-1216) As req’d 46-47-48 0.38
28-15 NAS1149F1232P Washer (AN960-1216L) As req’d 46-47-48 0.18
28-16 108-5181000 Strut Assembly – Landing Gear Shock 2 46-47-48 2053.24
28-17 AN6-14 Bolt 1 46-47-48 1.44
NAS1149F0663P Washer 2 46-47-48 0.11
AN310-6 Nut 2 46-47-48 2.58
MS24665-285 Cotter Pin (AN380-3-4) 2 46-47-48 0.04
28-18 AN6-21 Bolt 1 46-47-48 1.85
28-19 108-5101304-1 5 Hose Assembly – Flexible Brake 2 46-47-48 319.04
28-20 108-5102017 Brake Line – Cleveland 2 48 93.43
28-20 108-5101000-18 Brake Line Assembly (not formed) 2 46-47-48 146.86
28-21 108-5101102-8 Bulkhead – Landing Strut Fairing – LH 1 46-47-48 56.96
28-21 108-5101102-9 Bulkhead – Landing Strut Fairing – RH 1 46-47-48 56.96
28-22 108-5101107 Clamp Assembly – Landing Gear Fairing – Lower 2 46-47-48 142.37
28-23 108-5101102-6 Bulkhead – Landing Strut Fairing – LH 1 46-47-48 90.16
28-23 108-5101102-7 Bulkhead – Landing Strut Fairing – RH 1 46-47-48 90.16
1 For airplanes serial 108-1 through 108-81 and 108-83 through 108-111 4 For airplanes serial 108-4125 and up
2 For airplanes serial 108-82, 108-112 and up 5 Not applicable on serial numbers 108-4435 to 108-4476
3 For airplanes serial 108-1 through 108-4124
68
