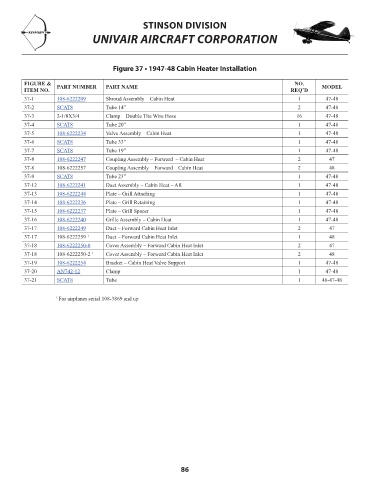

Figure 37 • 1947-48 Cabin Heater Installation

FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
37-1 108-6222209 Shroud Assembly – Cabin Heat 1 47-48 605.18
37-2 SCAT8 Tube 14” 2 47-48 171.16
37-3 2-1/8X3/4 Clamp – Double Tite Wire Hose 16 47-48 NM!
37-4 SCAT8 Tube 20” 1 47-48 171.16
37-5 108-6222234 Valve Assembly – Cabin Heat 1 47-48 1086.73
37-6 SCAT8 Tube 33” 1 47-48 171.16
37-7 SCAT8 Tube 19” 1 47-48 171.16
37-8 108-6222247 Coupling Assembly – Forward – Cabin Heat 2 47 50.22
37-8 108-6222257 Coupling Assembly – Forward – Cabin Heat 2 48 NM!
37-9 SCAT8 Tube 23” 1 47-48 171.16
37-12 108-6222241 Duct Assembly – Cabin Heat – Aft 1 47-48 134.02
37-13 108-6222244 Plate – Grill Attaching 1 47-48 14.04
37-14 108-6222236 Plate – Grill Retaining 1 47-48 13.42
37-15 108-6222237 Plate – Grill Spacer 1 47-48 16.07
37-16 108-6222240 Grille Assembly – Cabin Heat 1 47-48 233.15
37-17 108-6222249 Duct – Forward Cabin Heat Inlet 2 47 25.79
37-17 108-6222259 1 Duct – Forward Cabin Heat Inlet 1 48 NM!
37-18 108-6222250-0 Cover Assembly – Forward Cabin Heat Inlet 2 47 33.46
37-18 108-6222250-2 1 Cover Assembly – Forward Cabin Heat Inlet 2 48 NM!
37-19 108-6222254 Bracket – Cabin Heat Valve Support 1 47-48 5.39
37-20 AN742-12 Clamp 1 47-48 1.73
37-21 SCAT8 Tube 1 46-47-48 171.16

1 For airplanes serial 108-3869 and up
