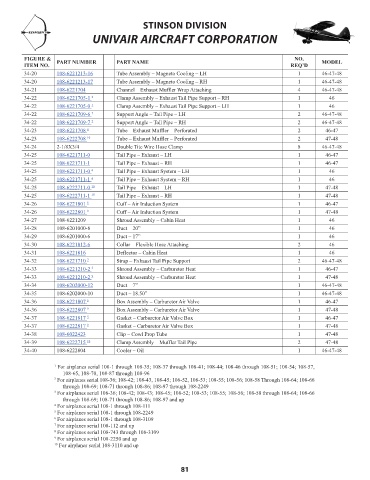

P. 87
STINSON DIVISION
UNIVAIR AIRCRAFT CORPORATION
FIGURE & PART NUMBER PART NAME NO. MODEL PRICE
ITEM NO. REQ’D
34-20 108-6221213-16 Tube Assembly – Magneto Cooling – LH 1 46-47-48 45.73
34-20 108-6221213-17 Tube Assembly – Magneto Cooling – RH 1 46-47-48 45.73
34-21 108-6221704 Channel – Exhaust Muffler Wrap Attaching 4 46-47-48 79.97
34-22 108-6221705-1 4 Clamp Assembly – Exhaust Tail Pipe Support – RH 1 46 75.55
34-22 108-6221705-0 1 Clamp Assembly – Exhaust Tail Pipe Support – LH 1 46 72.27
34-22 108-6221709-6 7 Support Angle – Tail Pipe – LH 2 46-47-48 16.20
34-22 108-6221709-7 7 Support Angle – Tail Pipe – RH 2 46-47-48 14.64
34-23 108-6221708 6 Tube – Exhaust Muffler – Perforated 2 46-47 336.55
34-23 108-6222708 10 Tube – Exhaust Muffler – Perforated 2 47-48 336.55
34-24 2-1/8X3/4 Double Tite Wire Hose Clamp 8 46-47-48 NM!
34-25 108-6221711-0 Tail Pipe – Exhaust – LH 1 46-47 501.74
34-25 108-6221711-1 Tail Pipe – Exhaust – RH 1 46-47 551.90
34-25 108-6221711-0 4 Tail Pipe – Exhaust System – LH 1 46 501.74
34-25 108-6221711-1 4 Tail Pipe – Exhaust System – RH 1 46 551.90
34-25 108-6222711-0 10 Tail Pipe – Exhaust – LH 1 47-48 458.85
34-25 108-6222711-1 10 Tail Pipe – Exhaust – RH 1 47-48 436.23
34-26 108-6221801 5 Cuff – Air Induction System 1 46-47 204.68
34-26 108-6222801 9 Cuff – Air Induction System 1 47-48 204.68
34-27 108-6221209 Shroud Assembly – Cabin Heat 1 46 NM!
34-28 108-6201000-8 Duct – 20” 1 46 NM!
34-29 108-6201000-6 Duct – 17” 1 46 NM!
34-30 108-6221812-6 Collar – Flexible Hose Attaching 2 46 19.43
34-31 108-6221816 Deflector – Cabin Heat 1 46 13.42
34-32 108-6221710 7 Strap – Exhaust Tail Pipe Support 2 46-47-48 114.03
34-33 108-6221210-2 5 Shroud Assembly – Carburetor Heat 1 46-47 539.79
34-33 108-6221210-2 9 Shroud Assembly – Carburetor Heat 1 47-48 539.79
34-34 108-6202000-12 Duct – 7” 1 46-47-48 37.52
34-35 108-6202000-10 Duct – 18.50” 1 46-47-48 NM!
34-36 108-6221807 5 Box Assembly – Carburetor Air Valve 1 46-47 750.17
34-36 108-6222807 9 Box Assembly – Carburetor Air Valve 1 47-48 1812.53
34-37 108-6221817 5 Gasket – Carburetor Air Valve Box 1 46-47 16.74
34-37 108-6222817 9 Gasket – Carburetor Air Valve Box 1 47-48 11.64
34-38 108-6022423 Clip – Cowl Prop Tube 1 47-48 50.26
34-39 108-6222715 10 Clamp Assembly – Muffler Tail Pipe 2 47-48 102.20
34-40 108-6222804 Cooler – Oil 1 46-47-48 NM!
1 For airplanes serial 108-1 through 108-35; 108-37 through 108-41; 108-44; 108-46 through 108-51; 108-54; 108-57,
108-65, 108-70, 108-87 through 108-96
2 For airplanes serial 108-36; 108-42; 108-43, 108-45; 106-52, 108-53; 108-55; 108-56; 108-58 Through 108-64; 108-66
through 108-69; 108-71 through 108-86; 108-97 through 108-2249
3 For airplanes serial 108-36; 108-42; 108-43; 108-45; 108-52; 108-53; 108-55; 108-56; 108-58 through 108-64; 108-66
through 108-69; 108-71 through 108-86; 108-97 and up
4 For airplanes serial 108-1 through 108-111
5 For airplanes serial 108-1 through 108-2249
6 For airplanes serial 108-1 through 108-3109
7 For airplanes serial 108-112 and up
8 For airplanes serial 108-743 through 108-3109
9 For airplanes serial 108-2250 and up
10 For airplanes serial 108-3110 and up
81
