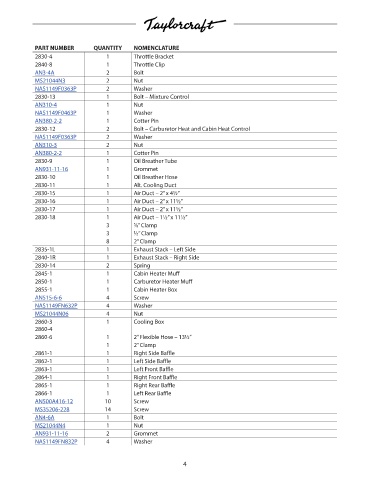

PART NUMBER QUANTITY NOMENCLATURE PRICE
2830-4 1 Throttle Bracket NM!
2840-8 1 Throttle Clip NM!
AN3-4A 2 Bolt 0.2
MS21044N3 2 Nut 0.24
NAS1149F0363P 2 Washer 0.04
2830-13 1 Bolt – Mixture Control NM!
AN310-4 1 Nut 1.6
NAS1149F0463P 1 Washer 0.06
AN380-2-2 1 Cotter Pin 0.04
2830-12 2 Bolt – Carburetor Heat and Cabin Heat Control NM!
NAS1149F0363P 2 Washer 0.04
AN310-3 2 Nut 1.5
AN380-2-2 1 Cotter Pin 0.04
2830-9 1 Oil Breather Tube NM!
AN931-11-16 1 Grommet 3.43
2830-10 1 Oil Breather Hose NM!
2830-11 1 Alt. Cooling Duct NM!
2830-15 1 Air Duct – 2” x 4½” NM!
2830-16 1 Air Duct – 2’’ x 11½” NM!
2830-17 1 Air Duct – 2” x 11½” NM!
2830-18 1 Air Duct – 1½” x 11½” NM!
3 5 ⁄8” Clamp x
3 ½” Clamp x
8 2” Clamp x
2835-1L 1 Exhaust Stack – Left Side NM!
2840-1R 1 Exhaust Stack – Right Side NM!
2830-14 2 Spring NM!
2845-1 1 Cabin Heater Muff NM!
2850-1 1 Carburetor Heater Muff NM!
2855-1 1 Cabin Heater Box NM!
AN515-6-6 4 Screw 0.11
NAS1149FN632P 4 Washer 0.06
MS21044N06 4 Nut 0.32
2860-3 1 Cooling Box NM!
2860-4
2860-6 1 2” Flexible Hose – 13½” NM!
1 2” Clamp x
2861-1 1 Right Side Baffle NM!
2862-1 1 Left Side Baffle NM!
2863-1 1 Left Front Baffle NM!
2864-1 1 Right Front Baffle NM!
2865-1 1 Right Rear Baffle NM!
2866-1 1 Left Rear Baffle NM!
AN500A416-12 10 Screw 1.32
MS35206-228 14 Screw 0.09
AN4-6A 1 Bolt 0.22
MS21044N4 1 Nut 0.3
AN931-11-16 2 Grommet 3.43
NAS1149FN832P 4 Washer 0.04
