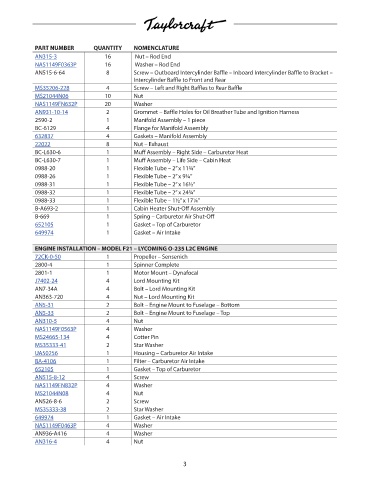

Page 7 - Taylorcraft Interactive Digital Parts Catalog

PART NUMBER QUANTITY NOMENCLATURE PRICE
AN315-3 16 Nut – Rod End 0.26
NAS1149F0363P 16 Washer – Rod End 0.04
AN515-6-64 8 Screw – Outboard Intercylinder Baffle – Inboard Intercylinder Baffle to Bracket – NM!
Intercylinder Baffle to Front and Rear
MS35206-228 4 Screw – Left and Right Baffles to Rear Baffle 0.09
MS21044N06 10 Nut 0.32
NAS1149FN632P 20 Washer 0.06
AN931-10-14 2 Grommet – Baffle Holes for Oil Breather Tube and Ignition Harness 2
2590-2 1 Manifold Assembly – 1 piece NM!
BC-6129 4 Flange for Manifold Assembly NM!
632837 4 Gaskets – Manifold Assembly 3.28
22022 8 Nut – Exhaust 2.11
BC-L630-6 1 Muff Assembly – Right Side – Carburetor Heat NM!
BC-L630-7 1 Muff Assembly – Life Side – Cabin Heat NM!
0988-20 1 Flexible Tube – 2” x 11¾” NM!
0988-26 1 Flexible Tube – 2” x 9¼” NM!
0988-31 1 Flexible Tube – 2” x 16½” NM!
0988-32 1 Flexible Tube – 2” x 24¾” NM!
0988-33 1 Flexible Tube – 1½” x 17¼” NM!
B-A693-2 1 Cabin Heater Shut-Off Assembly NM!
B-669 1 Spring – Carburetor Air Shut-Off NM!
652105 1 Gasket – Top of Carburetor 2.5
649974 1 Gasket – Air Intake 2.59

ENGINE INSTALLATION – MODEL F21 – LYCOMING O-235 L2C ENGINE
72CK-0-50 1 Propeller – Sensenich 4896.5
2800-4 1 Spinner Complete NM!
2801-1 1 Motor Mount – Dynafocal NM!
J7402-24 4 Lord Mounting Kit 209.49
AN7-34A 4 Bolt – Lord Mounting Kit NM!
AN363-720 4 Nut – Lord Mounting Kit NM!
AN5-31 2 Bolt – Engine Mount to Fuselage – Bottom 1.3
AN5-33 2 Bolt – Engine Mount to Fuselage – Top 5.64
AN310-5 4 Nut 2
NAS1149F0563P 4 Washer 0.08
MS24665-134 4 Cotter Pin 0.06
MS35333-41 2 Star Washer 0.76
UA50256 1 Housing – Carburetor Air Intake 748.34
BA-4106 1 Filter – Carburetor Air Intake 69.02
652105 1 Gasket – Top of Carburetor 2.5
AN515-8-12 4 Screw 0.09
NAS1149FN832P 4 Washer 0.04
MS21044N08 4 Nut 0.24
AN526-8-6 2 Screw NM!
MS35333-38 2 Star Washer 0.04
649974 1 Gasket – Air Intake 2.59
NAS1149F0463P 4 Washer 0.06
AN936-A416 4 Washer NM!
AN316-4 4 Nut 0.22

3
