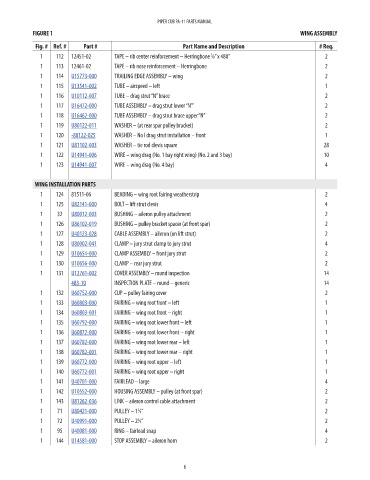

PIPER CUB PA-11 PARTS MANUAL
FIGURE 1 WING ASSEMBLY

Fig. # Ref. # Part # Part Name and Description # Req. Price
1 112 12451-02 TAPE – rib center reinforcement – Herringbone ⁄8” x 480” 2 NM!
3
1 113 12461-02 TAPE – rib nose reinforcement – Herringbone 2 NM!
1 114 U15773-000 TRAILING EDGE ASSEMBLY – wing 2 97.99
1 115 U13541-002 TUBE – airspeed – left 1 72.85
1 116 U10112-007 TUBE – drag strut “N” brace 2 102.88
1 117 U16472-000 TUBE ASSEMBLY – drag strut lower “N’” 2 145.48
1 118 U16462-000 TUBE ASSEMBLY – drag strut brace upper “N” 2 144.97
1 119 U80122-011 WASHER – (at rear spar pulley bracket) 2 1.25
1 120 -80122-025 WASHER – No I drag strut installation – front 1 6.92
1 121 U81102-003 WASHER – tie rod clevis square 28 5.05
1 122 U14941-006 WIRE – wing drag (No. 1 bay right wing) (No. 2 and 3 bay) 10 33.37
1 123 U14941-007 WIRE – wing drag (No. 4 bay) 4 39.25

WING INSTALLATION PARTS
1 124 81511-06 BEADING – wing root fairing weatherstrip 2 NM!
1 125 U82141-000 BOLT – lift strut clevis 4 29.11
1 32 U80012-003 BUSHING – aileron pulley attachment 2 6.56
1 126 U86102-019 BUSHING – pulley bracket spacer (at front spar) 2 20.10
1 127 U40123-028 CABLE ASSEMBLY – aileron (on lift strut) 2 149.79
1 128 U80002-041 CLAMP – jury strut clamp to jury strut 4 24.59
1 129 U10654-000 CLAMP ASSEMBLY – front jury strut 2 117.52

1 130 U10656-000 CLAMP – rear jury strut 2 39.84
1 131 U12761-002 COVER ASSEMBLY – round inspection 14 51.66
483-10 INSPECTION PLATE – round – generic 14 2.58
1 132 U60752-000 CUP – pulley fairing cover 2 72.51
1 133 U60803-000 FAIRING – wing root front – left 1 36.16
1 134 U60803-001 FAIRING – wing root front – right 1 36.16
1 135 U60792-000 FAIRING – wing root lower front – left 1 67.69
1 136 U60872-000 FAIRING – wing root lower front – right 1 65.73
1 137 U60782-000 FAIRING – wing root lower rear – left 1 51.20
1 138 U60782-001 FAIRING – wing root lower rear – right 1 48.47
1 139 U60772-000 FAIRING – wing root upper – left 1 74.06
1 140 U60772-001 FAIRING – wing root upper – right 1 74.06
1 141 U40701-000 FAIRLEAD – large 4 1.44
1 142 U10552-000 HOUSING ASSEMBLY – pulley (at front spar) 2 76.15
1 143 U81262-036 LINK – aileron control cable attachment 2 20.28
1 71 U80421-000 PULLEY – 1 ⁄4’’ 2 16.17
3
3
1 72 U40991-000 PULLEY – 2 ⁄4” 2 20.19
1 95 U40081-000 RING – fairlead snap 4 0.54
1 144 U14581-000 STOP ASSEMBLY – aileron horn 2 253.22

6
