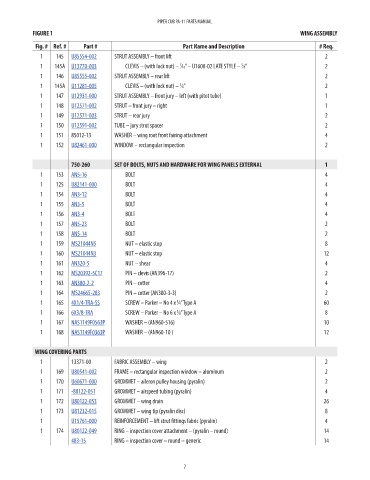

PIPER CUB PA-11 PARTS MANUAL
FIGURE 1 WING ASSEMBLY

Fig. # Ref. # Part # Part Name and Description # Req. Price
1 145 U85554-002 STRUT ASSEMBLY – front lift 2 925.59
1 145A U13770-003 CLEVIS – (with lock nut) – ⁄16” – U1600-02 LATE STYLE – ⁄8” 2 128.27
7
5
1 146 U85555-002 STRUT ASSEMBLY – rear lift 2 820.03
1 145A U11281-005 CLEVIS – (with lock nut) – ⁄8” 2 324.78
3
1 147 U12931-000 STRUT ASSEMBLY – front jury – left (with pitot tube) 1 295.47
1 148 U12571-002 STRUT – front jury – right 1 142.82
1 149 U12571-003 STRUT – rear jury 2 142.82
1 150 U12591-002 TUBE – jury strut spacer 2 94.76
1 151 85012-13 WASHER – wing root front fairing attachment 4 NM!
1 152 U82461-000 WINDOW – rectangular inspection 2 19.87
$22.52
750-260 SET OF BOLTS, NUTS AND HARDWARE FOR WING PANELS EXTERNAL 1 NM!
1 153 AN5-16 BOLT 4 1.50
1 125 U82141-000 BOLT 4 29.11
1 154 AN3-12 BOLT 4 1.06
1 155 AN3-5 BOLT 4 0.60
1 156 AN3-4 BOLT 4 1.00
1 157 AN5-23 BOLT 2 1.30
1 158 AN5-14 BOLT 2 0.90
1 159 MS21044N5 NUT – elastic stop 8 0.50
1 160 MS21044N3 NUT – elastic stop 12 0.51

1 161 AN320-5 NUT – shear 4 1.00
1 162 MS20392-5C17 PIN – clevis (AN396-17) 2 3.00
1 163 AN380-2-2 PIN – cotter 4 0.04
1 164 MS24665-283 PIN – cotter (AN380-3-3) 2 0.14
1
1 165 4X1/4-TRA-SS SCREW – Parker – No 4 x ⁄4” Type A 60 0.10
1 166 6X3/8-TRA SCREW – Parker – No 6 x ⁄8” Type A 8 0.06
3
1 167 NAS1149F0563P WASHER – (AN960-516) 10 0.18
1 168 NAS1149F0363P WASHER – (AN960-10 ) 12 0.08
xx
WING COVERING PARTS xx
1 13371-00 FABRIC ASSEMBLY – wing 2 NM!
1 169 U80541-002 FRAME – rectangular inspection window – aluminum 2 16.33
1 170 U60671-000 GROMMET – aileron pulley housing (pyralin) 2 12.81
1 171 -80122-051 GROMMET – airspeed tubing (pyralin) 4 4.37
1 172 U80122-053 GROMMET – wing drain 26 4.52
1 173 U81232-015 GROMMET – wing tip (pyralin disc) 8 2.43
1 U15761-000 REINFORCEMENT – lift strut fittings fabric (pyralin) 4 9.61
1 174 U80122-049 RING – inspection cover attachment – (pyralin – round) 14 6.28
483-15 RING – inspection cover – round – generic 14 2.04

7
