Page 9 - Piper PA-11 Cub Special Parts Manual

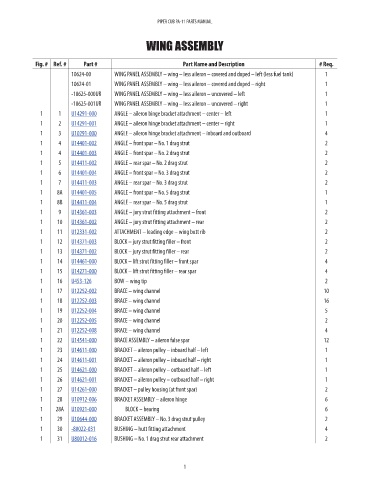

PIPER CUB PA-11 PARTS MANUAL

WING ASSEMBLY

Fig. # Ref. # Part # Part Name and Description # Req. Price
10624-00 WING PANEL ASSEMBLY – wing – less aileron – covered and doped – left (less fuel tank) 1 NM!
10624-01 WING PANEL ASSEMBLY – wing – less aileron – covered and doped – right 1 NM!
-10625-000UR WING PANEL ASSEMBLY – wing – less aileron – uncovered – left 1 NM!
-10625-001UR WING PANEL ASSEMBLY – wing – less aileron – uncovered – right 1 NM!

1 1 U14291-000 ANGLE – aileron binge bracket attachment – center – left 1 23.54
1 2 U14291-001 ANGLE – aileron hinge bracket attachment – center – right 1 23.13
1 3 U10291-000 ANGLE – aileron hinge bracket attachment – inboard and outboard 4 26.29
1 4 U14401-002 ANGLE – front spar – No. 1 drag strut 2 16.29
1 4 U14401-003 ANGLE – front spar – No. 2 drag strut 2 26.11
1 5 U14411-002 ANGLE – rear spar – No. 2 drag strut 2 15.05
1 6 U14401-004 ANGLE – front spar – No. 3 drag strut 2 14.49
1 7 U14411-003 ANGLE – rear spar – No. 3 drag strut 2 19.06
1 8A U14401-005 ANGLE – front spar – No. 5 drag strut 1 27.08
1 8B U14411-004 ANGLE – rear spar – No. 5 drag strut 1 14.05
1 9 U14361-003 ANGLE – jury strut fitting attachment – front 2 33.98
1 10 U14361-002 ANGLE – jury strut fitting attachment – rear 2 19.43
1 11 U12331-002 ATTACHMENT – leading edge – wing butt rib 2 6.15
1 12 U14371-003 BLOCK – jury strut fitting filler – front 2 38.55
1 13 U14371-002 BLOCK – jury strut fitting filler – rear 2 38.60
1 14 U14461-000 BLOCK – lift strut fitting filler – front spar 4 56.02
1 15 U14271-000 BLOCK – lift strut fitting filler – rear spar 4 41.21
1 16 U453-126 BOW – wing tip 2 50.86
1 17 U12252-002 BRACE – wing channel 10 14.33
1 18 U12252-003 BRACE – wing channel 16 18.60
1 19 U12252-004 BRACE – wing channel 5 14.33
1 20 U12252-005 BRACE – wing channel 2 14.33
1 21 U12252-008 BRACE – wing channel 4 16.85
1 22 U14541-000 BRACE ASSEMBLY – aileron false spar 12 63.61
1 23 U14611-000 BRACKET – aileron pulley – inboard half – left 1 16.05
1 24 U14611-001 BRACKET – aileron pulley – inboard half – right 1 18.98
1 25 U14621-000 BRACKET – aileron pulley – outboard half – left 1 46.08
1 26 U14621-001 BRACKET – aileron pulley – outboard half – right 1 46.08

1 27 U14261-000 BRACKET – pulley housing (at front spar) 2 21.32
1 28 U10912-006 BRACKET ASSEMBLY – aileron hinge 6 117.22
1 28A U10921-000 BLOCK – bearing 6 27.54
1 29 U10644-000 BRACKET ASSEMBLY – No. 3 drag strut pulley 2 104.06
1 30 -80022-031 BUSHING – hutt fitting attachment 4 13.74
1 31 U80012-016 BUSHING – No. 1 drag strut rear attachment 2 17.05

1
