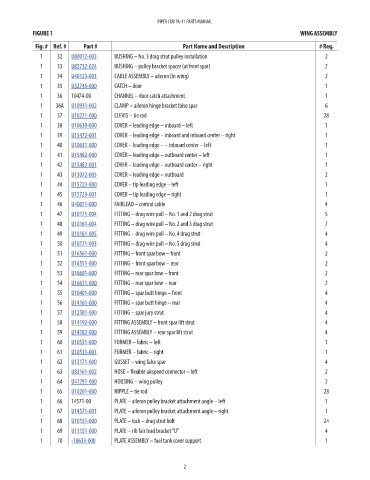

PIPER CUB PA-11 PARTS MANUAL
FIGURE 1 WING ASSEMBLY

Fig. # Ref. # Part # Part Name and Description # Req. Price
1 32 U80012-003 BUSHING – No. 3 drag strut pulley installation 2 6.56
1 33 U82732-024 BUSHING – pulley bracket spacer (at front spar) 2 19.37
1 34 U40123-003 CABLE ASSEMBLY – aileron (In wing) 2 158.09
1 35 U52745-000 CATCH – door 1 5.59
1 36 10474-00 CHANNEL – door catch attachment 1 NM!
1 36A U10931-002 CLAMP – aileron hinge bracket false spar 6 25.27
1 37 U10221-000 CLEVIS – tie rod 28 19.54
1 38 U10630-000 COVER – leading edge – inboard – left 1 230.41
1 39 U15472-001 COVER – leading edge – inboard and inboard center – right 1 237.04
1 40 U10631-000 COVER – leading edge – – inboard center – left 1 194.79
1 41 U15482-000 COVER – leading edge – outboard center – left 1 202.22
1 42 U15482-001 COVER – leading edge – outboard center – right 1 201.21
1 43 U13072-005 COVER – leading edge – outboard 2 90.06
1 44 U15723-000 COVER – tip leading edge – left 1 315.28
1 45 U15723-001 COVER – tip leading edge – right 1 315.28
1 46 U40071-000 FAIRLEAD – control cable 4 1.45
1 47 U10171-004 FITTING – drag wire pull – No. 1 and 2 drag strut 5 8.03
1 48 U10161-004 FITTING – drag wire pull – No. 2 and 3 drag strut 7 17.24
1 49 U10161-005 FITTING – drag wire pull – No. 4 drag strut 4 17.24
1 50 U10171-003 FITTING – drag wire pull – No. 5 drag strut 4 8.03
1 51 U16561-000 FITTING – front spar bow – front 2 17.00

1 52 U16551-000 FITTING – front spar bow – rear 2 23.50
1 53 U16601-000 FITTING – rear spar bow – front 2 17.16
1 54 U16611-000 FITTING – rear spar bow – rear 2 13.13
1 55 U10401-000 FITTING – spar butt hinge – front 4 50.54
1 56 U14161-000 FITTING – spar butt hinge – rear 4 39.95
1 57 U12581-000 FITTING – spar jury strut 4 23.40
1 58 U14192-000 FITTING ASSEMBLY – front spar lift strut 4 57.19
1 59 U14182-000 FITTING ASSEMBLY – rear spar lift strut 4 39.07
1 60 U10531-000 FORMER – fabric – left 1 73.61
1 61 U10531-001 FORMER – fabric – right 1 100.20
1 62 U13171-000 GUSSET – wing false spar 4 41.32
1 63 U83161-002 HOSE – flexible airspeed connector – left 2 7.77
1 64 U41291-000 HOUSING – wing pulley 2 61.65
1 65 U10201-000 NIPPLE – tie rod 28 12.94
1 66 14571-00 PLATE – aileron pulley bracket attachment angle – left 1 NM!
1 67 U14571-001 PLATE – aileron pulley bracket attachment angle – right 1 7.07
1 68 U10151-000 PLATE – lock – drag strut bolt 24 3.40
1 69 U11151-000 PLATE – rib fair lead bracket “U” 4 9.88
1 70 -10633-000 PLATE ASSEMBLY – fuel tank cover support 1 85.80

2
