PIPER CUB PA-11 PARTS MANUAL

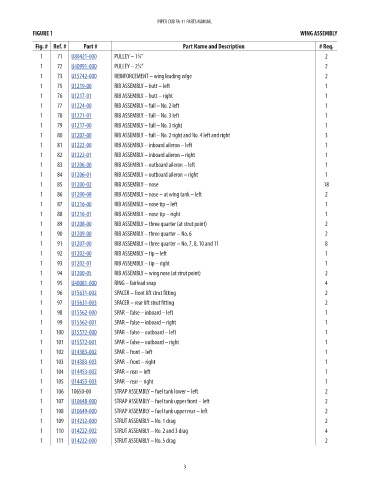

FIGURE 1 WING ASSEMBLY

Fig. # Ref. # Part # Part Name and Description # Req. Price
1 71 U80421-000 PULLEY – 1 ⁄4” 2 16.17
3
1 72 U40991-000 PULLEY – 2 ⁄4” 2 20.19
3
1 73 U15742-000 REINFORCEMENT – wing leading edge 2 50.38
1 75 U1219-00 RIB ASSEMBLY – butt – left 1 236.10
1 76 U1217-01 RIB ASSEMBLY – butt – right 1 139.50
1 77 U1224-00 RIB ASSEMBLY – full – No. 2 left 1 173.59
1 78 U1221-01 RIB ASSEMBLY – full – No. 3 left 1 186.49
1 79 U1217-00 RIB ASSEMBLY – full – No. 3 right 1 173.21
1 80 U1207-00 RIB ASSEMBLY – full – No. 2 right and No. 4 left and right 3 185.63
1 81 U1222-00 RIB ASSEMBLY – inboard aileron – left 1 186.07
1 82 U1222-01 RIB ASSEMBLY – inboard aileron – right 1 182.01
1 83 U1206-00 RIB ASSEMBLY – outboard aileron – left 1 238.60
1 84 U1206-01 RIB ASSEMBLY – outboard aileron – right 1 220.47
1 85 U1200-02 RIB ASSEMBLY – nose 18 32.76
1 86 U1200-08 RIB ASSEMBLY – nose – at wing tank – left 2 35.85
1 87 U1216-00 RIB ASSEMBLY – nose tip – left 1 35.27
1 88 U1216-01 RIB ASSEMBLY – nose tip – right 1 52.56
1 89 U1208-00 RIB ASSEMBLY – three quarter (at strut point) 2 233.02
1 90 U1209-00 RIB ASSEMBLY – three quarter – No. 6 2 217.91
1 91 U1207-00 RIB ASSEMBLY – three quarter – No. 7, 8, 10 and 11 8 185.63
1 92 U1202-00 RIB ASSEMBLY – tip – left 1 208.37

1 93 U1202-01 RIB ASSEMBLY – tip – right 1 197.06
1 94 U1200-05 RIB ASSEMBLY – wing nose (at strut point) 2 46.08
1 95 U40081-000 RING – fairlead snap 4 0.54
1 96 U15631-002 SPACER – front lift strut fitting 2 20.01
1 97 U15631-003 SPACER – rear lift strut fitting 2 20.01
1 98 U15562-000 SPAR – false – inboard – left 1 77.73
1 99 U15562-001 SPAR – false – inboard – right 1 77.73
1 100 U15572-000 SPAR – false – outboard – left 1 72.74
1 101 U15572-001 SPAR – false – outboard – right 1 72.74
1 102 U14383-002 SPAR – front – left 1 1000.65
1 103 U14383-003 SPAR – front – right 1 1000.65
1 104 U14453-002 SPAR – rear – left 1 819.00
1 105 U14453-003 SPAR – rear – right 1 819.00
1 106 10650-00 STRAP ASSEMBLY – fuel tank lower – left 2 NM!
1 107 U10648-000 STRAP ASSEMBLY – fuel tank upper front – left 2 91.63
1 108 U10649-000 STRAP ASSEMBLY – fuel tank upper rear – left 2 108.54
1 109 U14232-000 STRUT ASSEMBLY – No. 1 drag 2 124.74
1 110 U14222-002 STRUT ASSEMBLY – No. 2 and 3 drag 4 185.52
1 111 U14222-000 STRUT ASSEMBLY – No. 5 drag 2 192.72

3
