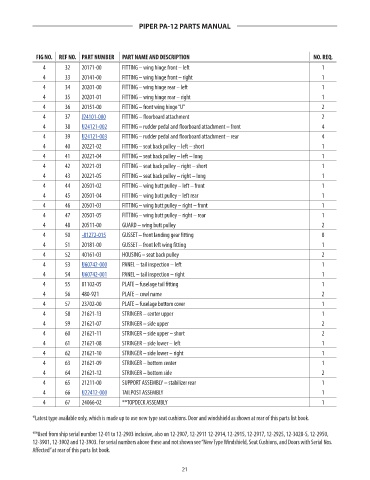

PIPER PA-12 PARTS MANUAL

FIG NO. REF NO. PART NUMBER PART NAME AND DESCRIPTION NO. REQ. PRICE
4 32 20171-00 FITTING – wing hinge front – left 1 NM!
4 33 20141-00 FITTING – wing hinge front – right 1 NM!
4 34 20201-00 FITTING – wing hinge rear – left 1 NM!
4 35 20201-01 FITTING – wing hinge rear – right 1 NM!
4 36 20151-00 FITTING – front wing hinge “U” 2 NM!
4 37 J24101-000 FITTING – floorboard attachment 2 5.88
4 38 U24121-002 FITTING – rudder pedal and floorboard attachment – front 4 8.24
4 39 U24121-003 FITTING – rudder pedal and floorboard attachment – rear 4 8.24
4 40 20221-02 FITTING – seat back pulley – left – short 1 NM!
4 41 20221-04 FITTING – seat back pulley – left – long 1 NM!
4 42 20221-03 FITTING – seat back pulley – right – short 1 NM!
4 43 20221-05 FITTING – seat back pulley – right – Iong 1 NM!

4 44 20501-02 FITTING – wing butt pulley – left – front 1 NM!
4 45 20501-04 FITTING – wing butt pulley – left rear 1 NM!
4 46 20501-03 FITTING – wing butt pulley – right – front 1 NM!
4 47 20501-05 FITTING – wing butt pulley – right – rear 1 NM!
4 48 20511-00 GUARD – wing butt pulley 2 NM!
4 50 -81272-015 GUSSET – front landing gear fitting 8 5.57
4 51 20181-00 GUSSET – front left wing fitting 1 NM!
4 52 40161-03 HOUSING – seat back pulley 2 NM!
4 53 U60742-000 PANEL – tail inspection – left 1 38.43
4 54 U60742-001 PANEL – tail inspection – right 1 38.43
4 55 81102-05 PLATE – fuselage tail fitting 1 NM!
4 56 480-921 PLATE – cowl name 2 NM!
4 57 23702-00 PLATE – fuselage bottom cover 1 NM!
4 58 21621-13 STRINGER – center upper 1 NM!
4 59 21621-07 STRINGER – side upper 2 NM!
4 60 21621-11 STRINGER – side upper – short 2 NM!
4 61 21621-08 STRINGER – side lower – left 1 NM!
4 62 21621-10 STRINGER – side lower – right 1 NM!
4 63 21621-09 STRINGER – bottom center 1 NM!
4 64 21621-12 STRINGER – bottom side 2 NM!
4 65 21211-00 SUPPORT ASSEMBLY – stabilizer rear 1 NM!
4 66 U22412-000 TAILPOST ASSEMBLY 1 176.36
4 67 24066-02 **TOPDECK ASSEMBLY 1 NM!

*Latest type available only, which is made up to use new type seat cushions. Door and windshield as shown at rear of this parts list book.

**Used from ship serial number 12-01 to 12-2903 inclusive, also on 12-2907, 12-2911 12-2914, 12-2915, 12-2917, 12-2925, 12-3028-S, 12-2950,
12-3901, 12-3902 and 12-3903. For serial numbers above these and not shown see “New Type Windshield, Seat Cushions, and Doors with Serial Nos.
Affected” at rear of this parts list book.

21
