Page 28 - Piper PA-14 Family Cruiser Parts List

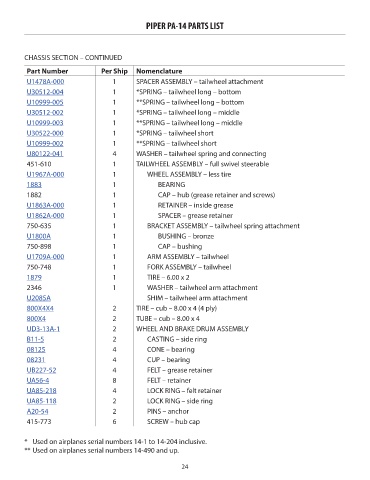

PIPER PA-14 PARTS LIST

CHASSIS SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
U1478A-000 1 SPACER ASSEMBLY – tailwheel attachment 95.09
U30512-004 1 *SPRING – tailwheel long – bottom 78.66
U10999-005 1 **SPRING – tailwheel long – bottom 81.44
U30512-002 1 *SPRING – tailwheel long – middle 82.27
U10999-003 1 **SPRING – tailwheel long – middle 81.67
U30522-000 1 *SPRING – tailwheel short 61.97

U10999-002 1 **SPRING – tailwheel short 56.83
U80122-041 4 WASHER – tailwheel spring and connecting 14.72
451-610 1 TAILWHEEL ASSEMBLY – full swivel steerable NM!
U1967A-000 1 WHEEL ASSEMBLY – less tire 574.36
1883 1 BEARING 103.94
1882 1 CAP – hub (grease retainer and screws) NM!
U1863A-000 1 RETAINER – inside grease 10.77

U1862A-000 1 SPACER – grease retainer 12.34
750-635 1 BRACKET ASSEMBLY – tailwheel spring attachment NM!
U1800A 1 BUSHING – bronze 91.48
750-898 1 CAP – bushing NM!
U1709A-000 1 ARM ASSEMBLY – tailwheel 574.37
750-748 1 FORK ASSEMBLY – tailwheel NM!
1879 1 TIRE – 6.00 x 2 195.35
2346 1 WASHER – tailwheel arm attachment NM!
U2085A SHIM – tailwheel arm attachment 4.82

800X4X4 2 TIRE – cub – 8.00 x 4 (4 ply) 682.50
800X4 2 TUBE – cub – 8.00 x 4 401.11
UD3-13A-1 2 WHEEL AND BRAKE DRUM ASSEMBLY 2089.56
B11-5 2 CASTING – side ring 66.40
08125 4 CONE – bearing 49.98
08231 4 CUP – bearing 31.18
UB227-52 4 FELT – grease retainer 1.76

UA56-4 8 FELT – retainer 10.19
UA85-218 4 LOCK RING – felt retainer 36.40
UA85-118 2 LOCK RING – side ring 24.26
A20-54 2 PINS – anchor 23.76
415-773 6 SCREW – hub cap NM!

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
