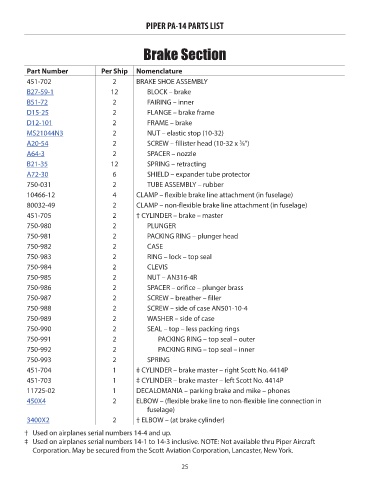

PIPER PA-14 PARTS LIST

Brake Section

Part Number Per Ship Nomenclature Price
451-702 2 BRAKE SHOE ASSEMBLY NM!
B27-59-1 12 BLOCK – brake 80.50
B51-72 2 FAIRING – inner 119.00
D15-25 2 FLANGE – brake frame 56.01
D12-101 2 FRAME – brake 31.02
MS21044N3 2 NUT – elastic stop (10-32) 0.51

A20-54 2 SCREW – fillister head (10-32 x ⁄8”) 23.76
3
A64-3 2 SPACER – nozzle 6.15
B21-35 12 SPRING – retracting 12.42
A72-30 6 SHIELD – expander tube protector 32.57
750-031 2 TUBE ASSEMBLY – rubber NM!
10466-12 4 CLAMP – flexible brake line attachment (in fuselage) NM!
80032-49 2 CLAMP – non-flexible brake line attachment (in fuselage) NM!

451-705 2 † CYLINDER – brake – master NM!
750-980 2 PLUNGER NM!
750-981 2 PACKING RING – plunger head NM!
750-982 2 CASE NM!
750-983 2 RING – lock – top seal NM!
750-984 2 CLEVIS NM!
750-985 2 NUT – AN316-4R NM!
750-986 2 SPACER – orifice – plunger brass NM!
750-987 2 SCREW – breather – filler NM!

750-988 2 SCREW – side of case AN501-10-4 NM!
750-989 2 WASHER – side of case NM!
750-990 2 SEAL – top – less packing rings NM!
750-991 2 PACKING RING – top seal – outer NM!
750-992 2 PACKING RING – top seal – inner NM!
750-993 2 SPRING NM!
451-704 1 ‡ CYLINDER – brake master – right Scott No. 4414P NM!

451-703 1 ‡ CYLINDER – brake master – left Scott No. 4414P NM!
11725-02 1 DECALOMANIA – parking brake and mike – phones NM!
450X4 2 ELBOW – (flexible brake line to non-flexible line connection in 2.65
fuselage)
3400X2 2 † ELBOW – (at brake cylinder) 6.14
† Used on airplanes serial numbers 14-4 and up.
‡ Used on airplanes serial numbers 14-1 to 14-3 inclusive. NOTE: Not available thru Piper Aircraft
Corporation. May be secured from the Scott Aviation Corporation, Lancaster, New York.

25
