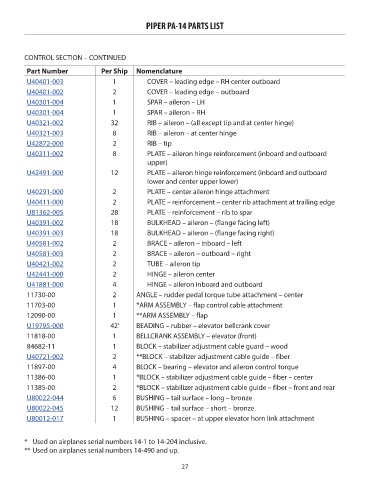

PIPER PA-14 PARTS LIST

CONTROL SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
U40401-003 1 COVER – leading edge – RH center outboard 65.45
U40401-002 2 COVER – leading edge – outboard 61.57
U40301-004 1 SPAR – aileron – LH 78.48
U40301-004 1 SPAR – aileron – RH 78.48
U40321-002 32 RIB – aileron – (all except tip and at center hinge) 18.69
U40321-003 8 RIB – aileron – at center hinge 28.57

U42872-000 2 RIB – tip 23.31
U40311-002 8 PLATE – aileron hinge reinforcement (inboard and outboard 8.09
upper)

U42491-000 12 PLATE – aileron hinge reinforcement (inboard and outboard 7.63
lower and center upper lower)

U40291-000 2 PLATE – center aileron hinge attachment 49.73
U40411-000 2 PLATE – reinforcement – center rib attachment at trailing edge 9.68
U81362-005 28 PLATE – reinforcement – rib to spar 1.79
U40391-002 18 BULKHEAD – aileron – (flange facing left) 23.67
U40391-003 18 BULKHEAD – aileron – (flange facing right) 20.32
U40581-002 2 BRACE – aileron – inboard – left 16.30
U40581-003 2 BRACE – aileron – outboard – right 20.95

U40421-002 2 TUBE – aileron tip 74.49
U42441-000 2 HINGE – aileron center 248.86
U41881-000 4 HINGE – aileron inboard and outboard 91.18
11730-00 2 ANGLE – rudder pedal torque tube attachment – center NM!
11703-00 1 *ARM ASSEMBLY – flap control cable attachment NM!
12090-00 1 **ARM ASSEMBLY – flap NM!
U19795-000 42’ BEADING – rubber – elevator bellcrank cover 29.86
11818-00 1 BELLCRANK ASSEMBLY – elevator (front) NM!
84682-11 1 BLOCK – stabilizer adjustment cable guard – wood NM!

U40721-002 2 **BLOCK – stabilizer adjustment cable guide – fiber 21.27
11897-00 4 BLOCK – bearing – elevator and aileron control torque NM!
11386-00 1 *BLOCK – stabilizer adjustment cable guide – fiber – center NM!
11385-00 2 *BLOCK – stabilizer adjustment cable guide – fiber – front and rear NM!
U80022-044 6 BUSHING – tail surface – long – bronze 1.40
U80022-045 12 BUSHING – tail surface – short – bronze 1.76
U80012-017 1 BUSHING – spacer – at upper elevator horn link attachment 14.01

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.

27
