Page 32 - Piper PA-14 Family Cruiser Parts List
P. 32

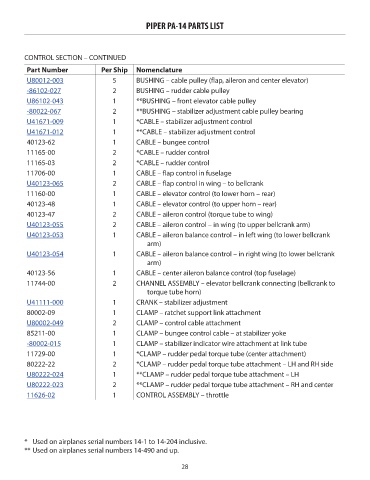

PIPER PA-14 PARTS LIST
CONTROL SECTION – CONTINUED
Part Number Per Ship Nomenclature Price
U80012-003 5 BUSHING – cable pulley (flap, aileron and center elevator) 6.56
-86102-027 2 BUSHING – rudder cable pulley 4.50
U86102-043 1 **BUSHING – front elevator cable pulley 11.96
-80022-067 2 **BUSHING – stabilizer adjustment cable pulley bearing 11.73
U41671-009 1 *CABLE – stabilizer adjustment control 338.18
U41671-012 1 **CABLE – stabilizer adjustment control 339.96
40123-62 1 CABLE – bungee control NM!
11165-00 2 *CABLE – rudder control NM!
11165-03 2 *CABLE – rudder control NM!
11706-00 1 CABLE – flap control in fuselage NM!
U40123-065 2 CABLE – flap control in wing – to bellcrank 134.02
11160-00 1 CABLE – elevator control (to lower horn – rear) NM!
40123-48 1 CABLE – elevator control (to upper horn – rear) NM!
40123-47 2 CABLE – aileron control (torque tube to wing) NM!
U40123-055 2 CABLE – aileron control – in wing (to upper bellcrank arm) 141.25
U40123-053 1 CABLE – aileron balance control – in left wing (to lower bellcrank 143.64
arm)
U40123-054 1 CABLE – aileron balance control – in right wing (to lower bellcrank 147.71
arm)
40123-56 1 CABLE – center aileron balance control (top fuselage) NM!
11744-00 2 CHANNEL ASSEMBLY – elevator bellcrank connecting (bellcrank to NM!
torque tube horn)
U41111-000 1 CRANK – stabilizer adjustment 139.81
80002-09 1 CLAMP – ratchet support link attachment NM!
U80002-049 2 CLAMP – control cable attachment 29.97
85211-00 1 CLAMP – bungee control cable – at stabilizer yoke NM!
-80002-015 1 CLAMP – stabilizer indicator wire attachment at link tube 23.71
11729-00 1 *CLAMP – rudder pedal torque tube (center attachment) NM!
80222-22 2 *CLAMP – rudder pedal torque tube attachment – LH and RH side NM!
U80222-024 1 **CLAMP – rudder pedal torque tube attachment – LH 37.88
U80222-023 2 **CLAMP – rudder pedal torque tube attachment – RH and center 40.50
11626-02 1 CONTROL ASSEMBLY – throttle NM!
* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
28
