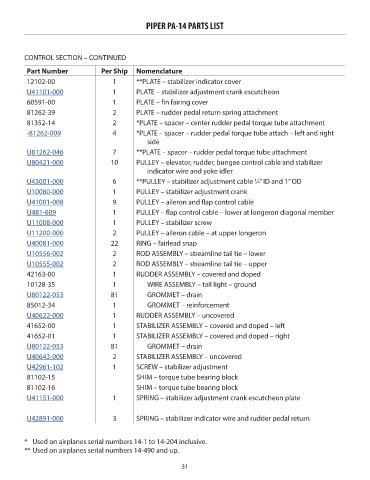

PIPER PA-14 PARTS LIST

CONTROL SECTION – CONTINUED

Part Number Per Ship Nomenclature Price
12102-00 1 **PLATE – stabilizer indicator cover NM!
U41101-000 1 PLATE – stabilizer adjustment crank escutcheon 39.21
60591-00 1 PLATE – fin fairing cover NM!
81262-39 2 PLATE – rudder pedal return spring attachment NM!
81352-14 2 *PLATE – spacer – center rudder pedal torque tube attachment NM!
-81262-009 4 *PLATE – spacer – rudder pedal torque tube attach – left and right 9.40
side
U81262-046 7 **PLATE – spacer – rudder pedal torque tube attachment 10.95
U80421-000 10 PULLEY – elevator, rudder, bungee control cable and stabilizer 16.17
indicator wire and yoke idler
U43001-000 6 **PULLEY – stabilizer adjustment cable ⁄4” ID and 1” OD 20.04
1
U10080-000 1 PULLEY – stabilizer adjustment crank 175.78
U41001-008 9 PULLEY – aileron and flap control cable 77.99
U481-609 1 PULLEY – flap control cable – lower at longeron diagonal member 13.13
U11008-000 1 PULLEY – stabilizer screw 206.07
U11200-000 2 PULLEY – aileron cable – at upper longeron 18.34
U40081-000 22 RING – fairlead snap 0.54
U10556-002 2 ROD ASSEMBLY – streamline tail tie – lower 231.11

U10555-002 2 ROD ASSEMBLY – streamline tail tie – upper 231.11
42163-00 1 RUDDER ASSEMBLY – covered and doped NM!
10128-35 1 WIRE ASSEMBLY – tail light – ground NM!
U80122-053 81 GROMMET – drain 4.52
85012-34 1 GROMMET – reinforcement NM!
U40622-000 1 RUDDER ASSEMBLY – uncovered 915.52
41652-00 1 STABILIZER ASSEMBLY – covered and doped – left NM!
41652-01 1 STABILIZER ASSEMBLY – covered and doped – right NM!
U80122-053 81 GROMMET – drain 4.52

U40643-000 2 STABILIZER ASSEMBLY – uncovered 875.23
U42961-102 1 SCREW – stabilizer adjustment 128.23
81102-15 SHIM – torque tube bearing block NM!
81102-16 SHIM – torque tube bearing block NM!
U41151-000 1 SPRING – stabilizer adjustment crank escutcheon plate 14.78

U42891-000 3 SPRING – stabilizer indicator wire and rudder pedal return 8.31

* Used on airplanes serial numbers 14-1 to 14-204 inclusive.
** Used on airplanes serial numbers 14-490 and up.
